기타육각구멍붙이볼트

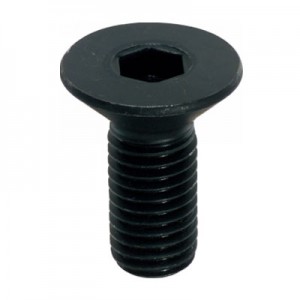

CDGB 육각렌치접시볼트

와이에이치티 ( YHT )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


162건 중 1~162건 표시

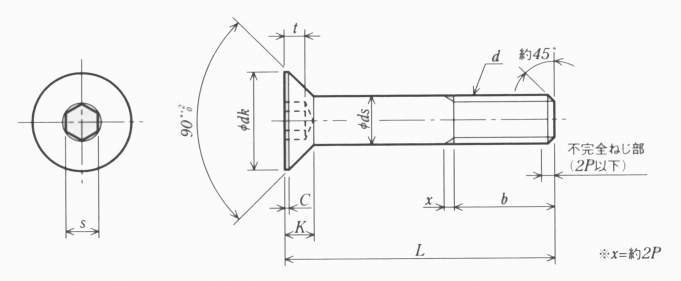

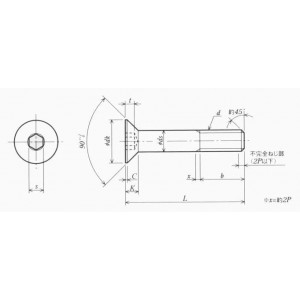

형식	나사 호칭 d	l (mm)	포장개수	피치 P (mm)	ds(mm)	ds(mm)	dk(mm)	dk(mm)
형식	나사 호칭 d	l (mm)	포장개수	피치 P (mm)	기준치수	허용차	기준치수	허용차
CDGB3-5-10	M3	5	10	0.5	3	0-0.14	6	0-0.30
CDGB3-5-100	M3	5	100	0.5	3	0-0.14	6	0-0.30
CDGB3-6-10	M3	6	10	0.5	3	0-0.14	6	0-0.30
CDGB3-6-100	M3	6	100	0.5	3	0-0.14	6	0-0.30
CDGB3-8-10	M3	8	10	0.5	3	0-0.14	6	0-0.30
CDGB3-8-100	M3	8	100	0.5	3	0-0.14	6	0-0.30
CDGB3-10-10	M3	10	10	0.5	3	0-0.14	6	0-0.30
CDGB3-10-100	M3	10	100	0.5	3	0-0.14	6	0-0.30
CDGB3-12-10	M3	12	10	0.5	3	0-0.14	6	0-0.30
CDGB3-12-100	M3	12	100	0.5	3	0-0.14	6	0-0.30
CDGB3-15-10	M3	15	10	0.5	3	0-0.14	6	0-0.30
CDGB3-15-100	M3	15	100	0.5	3	0-0.14	6	0-0.30
CDGB3-16-10	M3	16	10	0.5	3	0-0.14	6	0-0.30
CDGB3-16-100	M3	16	100	0.5	3	0-0.14	6	0-0.30
CDGB3-20-10	M3	20	10	0.5	3	0-0.14	6	0-0.30
CDGB3-20-100	M3	20	100	0.5	3	0-0.14	6	0-0.30
CDGB3-25-10	M3	25	10	0.5	3	0-0.14	6	0-0.30
CDGB3-25-100	M3	25	100	0.5	3	0-0.14	6	0-0.30
CDGB4-6-10	M4	6	10	0.7	4	0-0.18	8	0-0.36
CDGB4-6-100	M4	6	100	0.7	4	0-0.18	8	0-0.36
CDGB4-8-10	M4	8	10	0.7	4	0-0.18	8	0-0.36
CDGB4-8-100	M4	8	100	0.7	4	0-0.18	8	0-0.36
CDGB4-10-10	M4	10	10	0.7	4	0-0.18	8	0-0.36
CDGB4-10-100	M4	10	100	0.7	4	0-0.18	8	0-0.36
CDGB4-12-10	M4	12	10	0.7	4	0-0.18	8	0-0.36
CDGB4-12-100	M4	12	100	0.7	4	0-0.18	8	0-0.36
CDGB4-15-10	M4	15	10	0.7	4	0-0.18	8	0-0.36
CDGB4-15-100	M4	15	100	0.7	4	0-0.18	8	0-0.36
CDGB4-16-10	M4	16	10	0.7	4	0-0.18	8	0-0.36
CDGB4-16-100	M4	16	100	0.7	4	0-0.18	8	0-0.36
CDGB4-20-10	M4	20	10	0.7	4	0-0.18	8	0-0.36
CDGB4-20-100	M4	20	100	0.7	4	0-0.18	8	0-0.36
CDGB4-25-10	M4	25	10	0.7	4	0-0.18	8	0-0.36
CDGB4-25-100	M4	25	100	0.7	4	0-0.18	8	0-0.36
CDGB4-30-10	M4	30	10	0.7	4	0-0.18	8	0-0.36
CDGB4-30-100	M4	30	100	0.7	4	0-0.18	8	0-0.36
CDGB5-8-10	M5	8	10	0.8	5	0-0.18	10	0-0.36
CDGB5-8-100	M5	8	100	0.8	5	0-0.18	10	0-0.36
CDGB5-10-10	M5	10	10	0.8	5	0-0.18	10	0-0.36
CDGB5-10-100	M5	10	100	0.8	5	0-0.18	10	0-0.36
CDGB5-12-10	M5	12	10	0.8	5	0-0.18	10	0-0.36
CDGB5-12-100	M5	12	100	0.8	5	0-0.18	10	0-0.36
CDGB5-15-10	M5	15	10	0.8	5	0-0.18	10	0-0.36
CDGB5-15-100	M5	15	100	0.8	5	0-0.18	10	0-0.36
CDGB5-16-10	M5	16	10	0.8	5	0-0.18	10	0-0.36
CDGB5-16-100	M5	16	100	0.8	5	0-0.18	10	0-0.36
CDGB5-18-10	M5	18	10	0.8	5	0-0.18	10	0-0.36
CDGB5-18-100	M5	18	100	0.8	5	0-0.18	10	0-0.36
CDGB5-20-10	M5	20	10	0.8	5	0-0.18	10	0-0.36
CDGB5-20-100	M5	20	100	0.8	5	0-0.18	10	0-0.36
CDGB5-25-10	M5	25	10	0.8	5	0-0.18	10	0-0.36
CDGB5-25-100	M5	25	100	0.8	5	0-0.18	10	0-0.36
CDGB5-30-10	M5	30	10	0.8	5	0-0.18	10	0-0.36
CDGB5-30-100	M5	30	100	0.8	5	0-0.18	10	0-0.36
CDGB5-35-10	M5	35	10	0.8	5	0-0.18	10	0-0.36
CDGB5-35-100	M5	35	100	0.8	5	0-0.18	10	0-0.36
CDGB5-40-10	M5	40	10	0.8	5	0-0.18	10	0-0.36
CDGB5-40-100	M5	40	100	0.8	5	0-0.18	10	0-0.36
CDGB5-45-10	M5	45	10	0.8	5	0-0.18	10	0-0.36
CDGB5-45-100	M5	45	100	0.8	5	0-0.18	10	0-0.36
CDGB6-8-10	M6	8	10	1	6	0-0.18	12	0-0.43
CDGB6-8-100	M6	8	100	1	6	0-0.18	12	0-0.43
CDGB6-10-10	M6	10	10	1	6	0-0.18	12	0-0.43
CDGB6-10-100	M6	10	100	1	6	0-0.18	12	0-0.43
CDGB6-12-10	M6	12	10	1	6	0-0.18	12	0-0.43
CDGB6-12-100	M6	12	100	1	6	0-0.18	12	0-0.43
CDGB6-15-10	M6	15	10	1	6	0-0.18	12	0-0.43
CDGB6-15-100	M6	15	100	1	6	0-0.18	12	0-0.43
CDGB6-16-10	M6	16	10	1	6	0-0.18	12	0-0.43
CDGB6-16-100	M6	16	100	1	6	0-0.18	12	0-0.43
CDGB6-18-10	M6	18	10	1	6	0-0.18	12	0-0.43
CDGB6-18-100	M6	18	100	1	6	0-0.18	12	0-0.43
CDGB6-20-10	M6	20	10	1	6	0-0.18	12	0-0.43
CDGB6-20-100	M6	20	100	1	6	0-0.18	12	0-0.43
CDGB6-25-10	M6	25	10	1	6	0-0.18	12	0-0.43
CDGB6-25-100	M6	25	100	1	6	0-0.18	12	0-0.43
CDGB6-30-10	M6	30	10	1	6	0-0.18	12	0-0.43
CDGB6-30-100	M6	30	100	1	6	0-0.18	12	0-0.43
CDGB6-35-10	M6	35	10	1	6	0-0.18	12	0-0.43
CDGB6-35-100	M6	35	100	1	6	0-0.18	12	0-0.43
CDGB6-40-10	M6	40	10	1	6	0-0.18	12	0-0.43
CDGB6-40-100	M6	40	100	1	6	0-0.18	12	0-0.43
CDGB6-45-10	M6	45	10	1	6	0-0.18	12	0-0.43
CDGB6-45-100	M6	45	100	1	6	0-0.18	12	0-0.43
CDGB6-50-10	M6	50	10	1	6	0-0.18	12	0-0.43
CDGB6-50-100	M6	50	100	1	6	0-0.18	12	0-0.43
CDGB8-12	M8	12	1	1.25	8	0-0.22	16	0-0.43
CDGB8-12-100	M8	12	100	1.25	8	0-0.22	16	0-0.43
CDGB8-15	M8	15	1	1.25	8	0-0.22	16	0-0.43
CDGB8-15-100	M8	15	100	1.25	8	0-0.22	16	0-0.43
CDGB8-16	M8	16	1	1.25	8	0-0.22	16	0-0.43
CDGB8-16-100	M8	16	100	1.25	8	0-0.22	16	0-0.43
CDGB8-18	M8	18	1	1.25	8	0-0.22	16	0-0.43
CDGB8-18-100	M8	18	100	1.25	8	0-0.22	16	0-0.43
CDGB8-20	M8	20	1	1.25	8	0-0.22	16	0-0.43
CDGB8-20-100	M8	20	100	1.25	8	0-0.22	16	0-0.43
CDGB8-25	M8	25	1	1.25	8	0-0.22	16	0-0.43
CDGB8-25-100	M8	25	100	1.25	8	0-0.22	16	0-0.43
CDGB8-30	M8	30	1	1.25	8	0-0.22	16	0-0.43
CDGB8-30-100	M8	30	100	1.25	8	0-0.22	16	0-0.43
CDGB8-35	M8	35	1	1.25	8	0-0.22	16	0-0.43
CDGB8-35-100	M8	35	100	1.25	8	0-0.22	16	0-0.43
CDGB8-40	M8	40	1	1.25	8	0-0.22	16	0-0.43
CDGB8-40-100	M8	40	100	1.25	8	0-0.22	16	0-0.43
CDGB8-45	M8	45	1	1.25	8	0-0.22	16	0-0.43
CDGB8-45-100	M8	45	100	1.25	8	0-0.22	16	0-0.43
CDGB8-50	M8	50	1	1.25	8	0-0.22	16	0-0.43
CDGB8-50-100	M8	50	100	1.25	8	0-0.22	16	0-0.43
CDGB10-15	M10	15	1	1.5	10	0-0.22	20	0-0.52
CDGB10-15-100	M10	15	100	1.5	10	0-0.22	20	0-0.52
CDGB10-16	M10	16	1	1.5	10	0-0.22	20	0-0.52
CDGB10-16-100	M10	16	100	1.5	10	0-0.22	20	0-0.52
CDGB10-20	M10	20	1	1.5	10	0-0.22	20	0-0.52
CDGB10-20-100	M10	20	100	1.5	10	0-0.22	20	0-0.52
CDGB10-25	M10	25	1	1.5	10	0-0.22	20	0-0.52
CDGB10-25-100	M10	25	100	1.5	10	0-0.22	20	0-0.52
CDGB10-30	M10	30	1	1.5	10	0-0.22	20	0-0.52
CDGB10-30-100	M10	30	100	1.5	10	0-0.22	20	0-0.52
CDGB10-35	M10	35	1	1.5	10	0-0.22	20	0-0.52
CDGB10-35-100	M10	35	100	1.5	10	0-0.22	20	0-0.52
CDGB10-40	M10	40	1	1.5	10	0-0.22	20	0-0.52
CDGB10-40-100	M10	40	100	1.5	10	0-0.22	20	0-0.52
CDGB10-45	M10	45	1	1.5	10	0-0.22	20	0-0.52
CDGB10-45-100	M10	45	100	1.5	10	0-0.22	20	0-0.52
CDGB10-50	M10	50	1	1.5	10	0-0.22	20	0-0.52
CDGB10-50-100	M10	50	100	1.5	10	0-0.22	20	0-0.52
CDGB10-60	M10	60	1	1.5	10	0-0.22	20	0-0.52
CDGB10-60-100	M10	60	100	1.5	10	0-0.22	20	0-0.52
CDGB12-20	M12	20	1	1.75	12	0-0.27	24	0-0.52
CDGB12-20-100	M12	20	100	1.75	12	0-0.27	24	0-0.52
CDGB12-25	M12	25	1	1.75	12	0-0.27	24	0-0.52
CDGB12-25-100	M12	25	100	1.75	12	0-0.27	24	0-0.52
CDGB12-30	M12	30	1	1.75	12	0-0.27	24	0-0.52
CDGB12-30-100	M12	30	100	1.75	12	0-0.27	24	0-0.52
CDGB12-35	M12	35	1	1.75	12	0-0.27	24	0-0.52
CDGB12-35-100	M12	35	100	1.75	12	0-0.27	24	0-0.52
CDGB12-40	M12	40	1	1.75	12	0-0.27	24	0-0.52
CDGB12-40-100	M12	40	100	1.75	12	0-0.27	24	0-0.52
CDGB12-45	M12	45	1	1.75	12	0-0.27	24	0-0.52
CDGB12-45-100	M12	45	100	1.75	12	0-0.27	24	0-0.52
CDGB12-50	M12	50	1	1.75	12	0-0.27	24	0-0.52
CDGB12-50-100	M12	50	100	1.75	12	0-0.27	24	0-0.52
CDGB12-60	M12	60	1	1.75	12	0-0.27	24	0-0.52
CDGB12-60-100	M12	60	100	1.75	12	0-0.27	24	0-0.52
CDGB16-30	M16	30	1	2	16	0-0.27	30	0-0.52
CDGB16-30-50	M16	30	50	2	16	0-0.27	30	0-0.52
CDGB16-35	M16	35	1	2	16	0-0.27	30	0-0.52
CDGB16-35-50	M16	35	50	2	16	0-0.27	30	0-0.52
CDGB16-40	M16	40	1	2	16	0-0.27	30	0-0.52
CDGB16-40-50	M16	40	50	2	16	0-0.27	30	0-0.52
CDGB16-45	M16	45	1	2	16	0-0.27	30	0-0.52
CDGB16-45-50	M16	45	50	2	16	0-0.27	30	0-0.52
CDGB16-50	M16	50	1	2	16	0-0.27	30	0-0.52
CDGB16-50-50	M16	50	50	2	16	0-0.27	30	0-0.52
CDGB16-55	M16	55	1	2	16	0-0.27	30	0-0.52
CDGB16-55-50	M16	55	50	2	16	0-0.27	30	0-0.52
CDGB16-60	M16	60	1	2	16	0-0.27	30	0-0.52
CDGB16-60-50	M16	60	50	2	16	0-0.27	30	0-0.52
CDGB16-65	M16	65	1	2	16	0-0.27	30	0-0.52
CDGB16-65-50	M16	65	50	2	16	0-0.27	30	0-0.52
CDGB16-70	M16	70	1	2	16	0-0.27	30	0-0.52
CDGB16-70-50	M16	70	50	2	16	0-0.27	30	0-0.52

형식	k(mm)	k(mm)	C 참고 (mm)	s(mm)	s(mm)	t(mm)	t(mm)	b 유효나사길이 (mm)
형식	기준치수	허용차	C 참고 (mm)	기준치수	허용차	기준치수	허용차	b 유효나사길이 (mm)
CDGB3-5-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-5-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-6-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-6-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-8-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-8-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-10-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-10-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-12-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-12-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-15-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-15-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-16-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-16-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-20-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-20-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-25-10	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB3-25-100	1.7	0-0.2	0.2	2	0.05	1.2	0-0.25	12
CDGB4-6-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-6-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-8-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-8-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-10-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-10-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-12-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-12-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-15-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-15-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-16-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-16-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-20-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-20-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-25-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-25-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-30-10	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB4-30-100	2.3	0-0.2	0.3	2.5	0.065	1.8	0-0.25	14
CDGB5-8-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-8-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-10-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-10-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-12-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-12-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-15-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-15-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-16-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-16-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-18-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-18-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-20-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-20-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-25-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-25-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-30-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-30-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-35-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-35-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-40-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-40-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-45-10	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB5-45-100	2.8	0-0.2	0.3	3	0.065	2.3	0-0.25	16
CDGB6-8-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-8-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-10-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-10-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-12-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-12-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-15-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-15-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-16-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-16-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-18-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-18-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-20-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-20-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-25-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-25-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-30-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-30-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-35-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-35-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-40-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-40-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-45-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-45-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-50-10	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB6-50-100	3.3	0-0.3	0.3	4	0.08	2.5	0-0.25	18
CDGB8-12	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-12-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-15	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-15-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-16	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-16-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-18	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-18-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-20	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-20-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-25	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-25-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-30	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-30-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-35	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-35-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-40	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-40-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-45	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-45-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-50	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB8-50-100	4.4	0-0.3	0.4	5	0.135	3.5	0-0.30	22
CDGB10-15	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-15-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-16	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-16-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-20	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-20-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-25	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-25-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-30	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-30-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-35	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-35-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-40	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-40-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-45	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-45-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-50	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-50-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-60	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB10-60-100	5.5	0-0.4	0.5	6	0.135	4.4	0-0.30	26
CDGB12-20	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-20-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-25	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-25-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-30	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-30-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-35	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-35-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-40	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-40-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-45	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-45-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-50	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-50-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-60	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB12-60-100	6.5	0-0.4	0.5	8	0.17	4.6	0-0.30	30
CDGB16-30	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-30-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-35	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-35-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-40	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-40-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-45	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-45-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-50-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-55	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-55-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-60	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-60-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-65	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-65-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-70	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38
CDGB16-70-50	7.5	0-0.4	0.5	10	0.17	5.3	0-0.30	38

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
CDGB3-5-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB3-5-100	C	33,000	-	-	-	-	견적의뢰 / 주문
CDGB3-6-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB3-6-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB3-8-10	C	4,400	-	-	-	-	견적의뢰 / 주문
CDGB3-8-100	C	22,000	-	-	-	-	견적의뢰 / 주문
CDGB3-10-10	C	4,400	-	-	-	-	견적의뢰 / 주문
CDGB3-10-100	C	22,000	-	-	-	-	견적의뢰 / 주문
CDGB3-12-10	C	4,400	-	-	-	-	견적의뢰 / 주문
CDGB3-12-100	C	22,000	-	-	-	-	견적의뢰 / 주문
CDGB3-15-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB3-15-100	C	24,200	-	-	-	-	견적의뢰 / 주문
CDGB3-16-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB3-16-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB3-20-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB3-20-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB3-25-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB3-25-100	C	35,200	-	-	-	-	견적의뢰 / 주문
CDGB4-6-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB4-6-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB4-8-10	C	4,400	-	-	-	-	견적의뢰 / 주문
CDGB4-8-100	C	22,000	-	-	-	-	견적의뢰 / 주문
CDGB4-10-10	C	4,400	-	-	-	-	견적의뢰 / 주문
CDGB4-10-100	C	22,000	-	-	-	-	견적의뢰 / 주문
CDGB4-12-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB4-12-100	C	24,200	-	-	-	-	견적의뢰 / 주문
CDGB4-15-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB4-15-100	C	24,200	-	-	-	-	견적의뢰 / 주문
CDGB4-16-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB4-16-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB4-20-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB4-20-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB4-25-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB4-25-100	C	35,200	-	-	-	-	견적의뢰 / 주문
CDGB4-30-10	C	6,600	-	-	-	-	견적의뢰 / 주문
CDGB4-30-100	C	39,600	-	-	-	-	견적의뢰 / 주문
CDGB5-8-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB5-8-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB5-10-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB5-10-100	C	24,200	-	-	-	-	견적의뢰 / 주문
CDGB5-12-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB5-12-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB5-15-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB5-15-100	C	26,400	-	-	-	-	견적의뢰 / 주문
CDGB5-16-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB5-16-100	C	28,600	-	-	-	-	견적의뢰 / 주문
CDGB5-18-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB5-18-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB5-20-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB5-20-100	C	33,000	-	-	-	-	견적의뢰 / 주문
CDGB5-25-10	C	7,040	-	-	-	-	견적의뢰 / 주문
CDGB5-25-100	C	39,600	-	-	-	-	견적의뢰 / 주문
CDGB5-30-10	C	7,920	-	-	-	-	견적의뢰 / 주문
CDGB5-30-100	C	44,000	-	-	-	-	견적의뢰 / 주문
CDGB5-35-10	C	8,800	-	-	-	-	견적의뢰 / 주문
CDGB5-35-100	C	48,400	-	-	-	-	견적의뢰 / 주문
CDGB5-40-10	C	10,560	-	-	-	-	견적의뢰 / 주문
CDGB5-40-100	C	61,600	-	-	-	-	견적의뢰 / 주문
CDGB5-45-10	C	11,440	-	-	-	-	견적의뢰 / 주문
CDGB5-45-100	C	68,200	-	-	-	-	견적의뢰 / 주문
CDGB6-8-10	C	7,040	-	-	-	-	견적의뢰 / 주문
CDGB6-8-100	C	35,200	-	-	-	-	견적의뢰 / 주문
CDGB6-10-10	C	5,280	-	-	-	-	견적의뢰 / 주문
CDGB6-10-100	C	28,600	-	-	-	-	견적의뢰 / 주문
CDGB6-12-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB6-12-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB6-15-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB6-15-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB6-16-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB6-16-100	C	30,800	-	-	-	-	견적의뢰 / 주문
CDGB6-18-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB6-18-100	C	33,000	-	-	-	-	견적의뢰 / 주문
CDGB6-20-10	C	6,160	-	-	-	-	견적의뢰 / 주문
CDGB6-20-100	C	33,000	-	-	-	-	견적의뢰 / 주문
CDGB6-25-10	C	7,040	-	-	-	-	견적의뢰 / 주문
CDGB6-25-100	C	37,400	-	-	-	-	견적의뢰 / 주문
CDGB6-30-10	C	7,920	-	-	-	-	견적의뢰 / 주문
CDGB6-30-100	C	44,000	-	-	-	-	견적의뢰 / 주문
CDGB6-35-10	C	9,680	-	-	-	-	견적의뢰 / 주문
CDGB6-35-100	C	52,800	-	-	-	-	견적의뢰 / 주문
CDGB6-40-10	C	9,680	-	-	-	-	견적의뢰 / 주문
CDGB6-40-100	C	57,200	-	-	-	-	견적의뢰 / 주문
CDGB6-45-10	C	11,440	-	-	-	-	견적의뢰 / 주문
CDGB6-45-100	C	63,800	-	-	-	-	견적의뢰 / 주문
CDGB6-50-10	C	13,200	-	-	-	-	견적의뢰 / 주문
CDGB6-50-100	C	74,800	-	-	-	-	견적의뢰 / 주문
CDGB8-12	P	1,100	-	-	-	-	견적의뢰 / 주문
CDGB8-12-100	C	61,600	-	-	-	-	견적의뢰 / 주문
CDGB8-15	P	1,100	-	-	-	-	견적의뢰 / 주문
CDGB8-15-100	C	52,800	-	-	-	-	견적의뢰 / 주문
CDGB8-16	P	1,100	-	-	-	-	견적의뢰 / 주문
CDGB8-16-100	C	55,000	-	-	-	-	견적의뢰 / 주문
CDGB8-18	P	1,100	-	-	-	-	견적의뢰 / 주문
CDGB8-18-100	C	57,200	-	-	-	-	견적의뢰 / 주문
CDGB8-20	P	1,320	-	-	-	-	견적의뢰 / 주문
CDGB8-20-100	C	61,600	-	-	-	-	견적의뢰 / 주문
CDGB8-25	P	1,320	-	-	-	-	견적의뢰 / 주문
CDGB8-25-100	C	61,600	-	-	-	-	견적의뢰 / 주문
CDGB8-30	P	1,320	-	-	-	-	견적의뢰 / 주문
CDGB8-30-100	C	70,400	-	-	-	-	견적의뢰 / 주문
CDGB8-35	P	1,540	-	-	-	-	견적의뢰 / 주문
CDGB8-35-100	C	74,800	-	-	-	-	견적의뢰 / 주문
CDGB8-40	P	1,540	-	-	-	-	견적의뢰 / 주문
CDGB8-40-100	C	83,600	-	-	-	-	견적의뢰 / 주문
CDGB8-45	P	1,760	-	-	-	-	견적의뢰 / 주문
CDGB8-45-100	C	94,600	-	-	-	-	견적의뢰 / 주문
CDGB8-50	P	1,980	-	-	-	-	견적의뢰 / 주문
CDGB8-50-100	C	101,200	-	-	-	-	견적의뢰 / 주문
CDGB10-15	P	1,760	-	-	-	-	견적의뢰 / 주문
CDGB10-15-100	C	92,400	-	-	-	-	견적의뢰 / 주문
CDGB10-16	P	1,760	-	-	-	-	견적의뢰 / 주문
CDGB10-16-100	C	90,200	-	-	-	-	견적의뢰 / 주문
CDGB10-20	P	1,760	-	-	-	-	견적의뢰 / 주문
CDGB10-20-100	C	94,600	-	-	-	-	견적의뢰 / 주문
CDGB10-25	P	1,760	-	-	-	-	견적의뢰 / 주문
CDGB10-25-100	C	99,000	-	-	-	-	견적의뢰 / 주문
CDGB10-30	P	1,980	-	-	-	-	견적의뢰 / 주문
CDGB10-30-100	C	112,200	-	-	-	-	견적의뢰 / 주문
CDGB10-35	P	1,980	-	-	-	-	견적의뢰 / 주문
CDGB10-35-100	C	123,200	-	-	-	-	견적의뢰 / 주문
CDGB10-40	P	1,980	-	-	-	-	견적의뢰 / 주문
CDGB10-40-100	C	127,600	-	-	-	-	견적의뢰 / 주문
CDGB10-45	P	2,200	-	-	-	-	견적의뢰 / 주문
CDGB10-45-100	C	138,600	-	-	-	-	견적의뢰 / 주문
CDGB10-50	P	2,420	-	-	-	-	견적의뢰 / 주문
CDGB10-50-100	C	167,200	-	-	-	-	견적의뢰 / 주문
CDGB10-60	P	3,520	-	-	-	-	견적의뢰 / 주문
CDGB10-60-100	C	237,600	-	-	-	-	견적의뢰 / 주문
CDGB12-20	P	2,420	-	-	-	-	견적의뢰 / 주문
CDGB12-20-100	C	171,600	-	-	-	-	견적의뢰 / 주문
CDGB12-25	P	2,420	-	-	-	-	견적의뢰 / 주문
CDGB12-25-100	C	158,400	-	-	-	-	견적의뢰 / 주문
CDGB12-30	P	2,420	-	-	-	-	견적의뢰 / 주문
CDGB12-30-100	C	167,200	-	-	-	-	견적의뢰 / 주문
CDGB12-35	P	2,640	-	-	-	-	견적의뢰 / 주문
CDGB12-35-100	C	176,000	-	-	-	-	견적의뢰 / 주문
CDGB12-40	P	2,640	-	-	-	-	견적의뢰 / 주문
CDGB12-40-100	C	182,600	-	-	-	-	견적의뢰 / 주문
CDGB12-45	P	3,080	-	-	-	-	견적의뢰 / 주문
CDGB12-45-100	C	211,200	-	-	-	-	견적의뢰 / 주문
CDGB12-50	P	3,520	-	-	-	-	견적의뢰 / 주문
CDGB12-50-100	C	233,200	-	-	-	-	견적의뢰 / 주문
CDGB12-60	P	4,180	-	-	-	-	견적의뢰 / 주문
CDGB12-60-100	C	312,400	-	-	-	-	견적의뢰 / 주문
CDGB16-30	P	5,720	-	-	-	-	견적의뢰 / 주문
CDGB16-30-50	C	220,000	-	-	-	-	견적의뢰 / 주문
CDGB16-35	P	5,720	-	-	-	-	견적의뢰 / 주문
CDGB16-35-50	C	220,000	-	-	-	-	견적의뢰 / 주문
CDGB16-40	P	6,160	-	-	-	-	견적의뢰 / 주문
CDGB16-40-50	C	226,600	-	-	-	-	견적의뢰 / 주문
CDGB16-45	P	6,160	-	-	-	-	견적의뢰 / 주문
CDGB16-45-50	C	233,200	-	-	-	-	견적의뢰 / 주문
CDGB16-50	P	6,600	-	-	-	-	견적의뢰 / 주문
CDGB16-50-50	C	255,200	-	-	-	-	견적의뢰 / 주문
CDGB16-55	P	7,480	-	-	-	-	견적의뢰 / 주문
CDGB16-55-50	C	286,000	-	-	-	-	견적의뢰 / 주문
CDGB16-60	P	7,920	-	-	-	-	견적의뢰 / 주문
CDGB16-60-50	C	308,000	-	-	-	-	견적의뢰 / 주문
CDGB16-65	P	8,360	-	-	-	-	견적의뢰 / 주문
CDGB16-65-50	C	316,800	-	-	-	-	견적의뢰 / 주문
CDGB16-70	P	8,800	-	-	-	-	견적의뢰 / 주문
CDGB16-70-50	C	330,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
