HOME > 체인전도 > 드라이브체인 > 수퍼H체인
드라이브체인

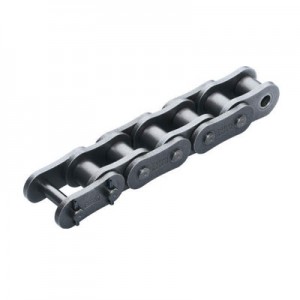

수퍼H체인
(주)츠바키모토체인 ( TSUBAKIMOTO CHAIN )
공통사양
캐드자료
    • 카탈로그
    		•



    관련이미지
    상세사양
    43건 중 1~43건 표시
    형식타입체인번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    형식타입체인번호열수피치
    P
    (mm)    		롤러경
    R
    (mm)    		안쪽링크내폭
    W
    (mm)
    RS100-SUP-H-1유니트RS100131.7519.0519.05
    RS80-SUP-H-1링크RS80125.415.8815.88
    RS80-SUP-H-2링크RS80225.415.8815.88
    RS80-SUP-H-3링크RS80325.415.8815.88
    RS100-SUP-H-1링크RS100131.7519.0519.05
    RS100-SUP-H-2링크RS100231.7519.0519.05
    RS100-SUP-H-3링크RS100331.7519.0519.05
    RS120-SUP-H-1링크RS120138.122.2325.4
    RS120-SUP-H-2링크RS120238.122.2325.4
    RS120-SUP-H-3링크RS120338.122.2325.4
    RS140-SUP-H-1링크RS140144.4525.425.4
    RS140-SUP-H-2링크RS140244.4525.425.4
    RS140-SUP-H-3링크RS140344.4525.425.4
    RS160-SUP-H-1링크RS160150.828.5831.75
    RS160-SUP-H-2링크RS160250.828.5831.75
    RS160-SUP-H-3링크RS160350.828.5831.75
    RS200-SUP-H-1링크RS200163.539.6838.1
    RS200-SUP-H-2링크RS200263.539.6838.1
    RS200-SUP-H-3링크RS200363.539.6838.1
    RS240-SUP-H-1링크RS240176.247.6347.63
    RS240-SUP-H-2링크RS240276.247.6347.63
    RS240-SUP-H-3링크RS240376.247.6347.63
    RS80-SUP-H-1-JL조인트링크RS80125.415.8815.88
    RS80-SUP-H-2-JL조인트링크RS80225.415.8815.88
    RS80-SUP-H-3-JL조인트링크RS80325.415.8815.88
    RS100-SUP-H-1-JL조인트링크RS100131.7519.0519.05
    RS100-SUP-H-2-JL조인트링크RS100231.7519.0519.05
    RS100-SUP-H-3-JL조인트링크RS100331.7519.0519.05
    RS120-SUP-H-1-JL조인트링크RS120138.122.2325.4
    RS120-SUP-H-2-JL조인트링크RS120238.122.2325.4
    RS120-SUP-H-3-JL조인트링크RS120338.122.2325.4
    RS140-SUP-H-1-JL조인트링크RS140144.4525.425.4
    RS140-SUP-H-2-JL조인트링크RS140244.4525.425.4
    RS140-SUP-H-3-JL조인트링크RS140344.4525.425.4
    RS160-SUP-H-1-JL조인트링크RS160150.828.5831.75
    RS160-SUP-H-2-JL조인트링크RS160250.828.5831.75
    RS160-SUP-H-3-JL조인트링크RS160350.828.5831.75
    RS200-SUP-H-1-JL조인트링크RS200163.539.6838.1
    RS200-SUP-H-2-JL조인트링크RS200263.539.6838.1
    RS200-SUP-H-3-JL조인트링크RS200363.539.6838.1
    RS240-SUP-H-1-JL조인트링크RS240176.247.6347.63
    RS240-SUP-H-2-JL조인트링크RS240276.247.6347.63
    RS240-SUP-H-3-JL조인트링크RS240376.247.6347.63
    형식플레이트(mm)플레이트(mm)플레이트(mm)핀(mm)핀(mm)핀(mm)횡피치
    C
    (mm)
    형식두께
    T    		폭
    H    		폭
    h    		핀경
    D    		L1L2횡피치
    C
    (mm)
    RS100-SUP-H-14.830.1269.5421.824.5-
    RS80-SUP-H-1424.120.87.9418.320.9-
    RS80-SUP-H-2424.120.87.9434.637.232.6
    RS80-SUP-H-3424.120.87.9450.9553.5532.6
    RS100-SUP-H-14.830.1269.5421.824.5-
    RS100-SUP-H-24.830.1269.5441.444.139.1
    RS100-SUP-H-34.830.1269.546163.639.1
    RS120-SUP-H-15.636.231.211.1126.9530.55-
    RS120-SUP-H-25.636.231.211.1151.45548.9
    RS120-SUP-H-35.636.231.211.1175.8579.5548.9
    RS140-SUP-H-16.442.236.412.7128.933.1-
    RS140-SUP-H-26.442.236.412.7154.9559.552.2
    RS140-SUP-H-36.442.236.412.7181.1585.2552.2
    RS160-SUP-H-17.1548.241.614.2933.9538.45-
    RS160-SUP-H-27.1548.241.614.2964.969.661.9
    RS160-SUP-H-37.1548.241.614.2995.95100.4561.9
    RS200-SUP-H-19.560.35219.8542.948.1-
    RS200-SUP-H-29.560.35219.8582.0587.378.3
    RS200-SUP-H-39.560.35219.85121.25126.5578.3
    RS240-SUP-H-112.772.462.423.8154.862.3-
    RS240-SUP-H-212.772.462.423.81105.3112.9101.2
    RS240-SUP-H-312.772.462.423.81156.05163.55101.2
    RS80-SUP-H-1-JL424.120.87.9418.320.9-
    RS80-SUP-H-2-JL424.120.87.9434.637.232.6
    RS80-SUP-H-3-JL424.120.87.9450.9553.5532.6
    RS100-SUP-H-1-JL4.830.1269.5421.824.5-
    RS100-SUP-H-2-JL4.830.1269.5441.444.139.1
    RS100-SUP-H-3-JL4.830.1269.546163.639.1
    RS120-SUP-H-1-JL5.636.231.211.1126.9530.55-
    RS120-SUP-H-2-JL5.636.231.211.1151.45548.9
    RS120-SUP-H-3-JL5.636.231.211.1175.8579.5548.9
    RS140-SUP-H-1-JL6.442.236.412.7128.933.1-
    RS140-SUP-H-2-JL6.442.236.412.7154.9559.552.2
    RS140-SUP-H-3-JL6.442.236.412.7181.1585.2552.2
    RS160-SUP-H-1-JL7.1548.241.614.2933.9538.45-
    RS160-SUP-H-2-JL7.1548.241.614.2964.969.661.9
    RS160-SUP-H-3-JL7.1548.241.614.2995.95100.4561.9
    RS200-SUP-H-1-JL9.560.35219.8542.948.1-
    RS200-SUP-H-2-JL9.560.35219.8582.0587.378.3
    RS200-SUP-H-3-JL9.560.35219.85121.25126.5578.3
    RS240-SUP-H-1-JL12.772.462.423.8154.862.3-
    RS240-SUP-H-2-JL12.772.462.423.81105.3112.9101.2
    RS240-SUP-H-3-JL12.772.462.423.81156.05163.55101.2
    형식최소인장강도
    (KN)    		평균인장강도
    (KN)    		최대허용장력
    (KN)    		개략질량
    (kg/m)    		링크수
    형식최소인장강도
    (KN)    		평균인장강도
    (KN)    		최대허용장력
    (KN)    		개략질량
    (kg/m)    		링크수
    RS100-SUP-H-112714532.44.8896
    RS80-SUP-H-185.398.120.63.92-
    RS80-SUP-H-2171196356.52-
    RS80-SUP-H-325629451.59.75-
    RS100-SUP-H-112714532.44.88-
    RS100-SUP-H-2253290559.51-
    RS100-SUP-H-338043580.914.14-
    RS120-SUP-H-117119642.26.94-
    RS120-SUP-H-234139271.713.51-
    RS120-SUP-H-351258810520.09-
    RS140-SUP-H-122225556.98.88-
    RS140-SUP-H-244351096.717.3-
    RS140-SUP-H-366576514225.88-
    RS160-SUP-H-128132473.511.72-
    RS160-SUP-H-256364712522.97-
    RS160-SUP-H-384497118434.22-
    RS200-SUP-H-152059810019.68-
    RS200-SUP-H-21040120017038.48-
    RS200-SUP-H-31560179025057.29-
    RS240-SUP-H-180292213930.47-
    RS240-SUP-H-21600184023759.77-
    RS240-SUP-H-32410277034889.09-
    RS80-SUP-H-1-JL85.398.120.63.92-
    RS80-SUP-H-2-JL171196356.52-
    RS80-SUP-H-3-JL25629451.59.75-
    RS100-SUP-H-1-JL12714532.44.88-
    RS100-SUP-H-2-JL253290559.51-
    RS100-SUP-H-3-JL38043580.914.14-
    RS120-SUP-H-1-JL17119642.26.94-
    RS120-SUP-H-2-JL34139271.713.51-
    RS120-SUP-H-3-JL51258810520.09-
    RS140-SUP-H-1-JL22225556.98.88-
    RS140-SUP-H-2-JL44351096.717.3-
    RS140-SUP-H-3-JL66576514225.88-
    RS160-SUP-H-1-JL28132473.511.72-
    RS160-SUP-H-2-JL56364712522.97-
    RS160-SUP-H-3-JL84497118434.22-
    RS200-SUP-H-1-JL52059810019.68-
    RS200-SUP-H-2-JL1040120017038.48-
    RS200-SUP-H-3-JL1560179025057.29-
    RS240-SUP-H-1-JL80292213930.47-
    RS240-SUP-H-2-JL1600184023759.77-
    RS240-SUP-H-3-JL2410277034889.09-
    형식단위판매정가
    (원)    		기준납기기준납기기준납기질량견적의뢰 및 주문
    형식단위판매정가
    (원)    		유통재고메이커재고아린재고질량견적의뢰 및 주문
    RS100-SUP-H-1P777,700----견적의뢰 / 주문
    RS80-SUP-H-1L4,136----견적의뢰 / 주문
    RS80-SUP-H-2L10,318----견적의뢰 / 주문
    RS80-SUP-H-3L16,500----견적의뢰 / 주문
    RS100-SUP-H-1L8,096----견적의뢰 / 주문
    RS100-SUP-H-2L20,240----견적의뢰 / 주문
    RS100-SUP-H-3L32,560----견적의뢰 / 주문
    RS120-SUP-H-1L13,530----견적의뢰 / 주문
    RS120-SUP-H-2L33,660----견적의뢰 / 주문
    RS120-SUP-H-3L54,120----견적의뢰 / 주문
    RS140-SUP-H-1L19,030----견적의뢰 / 주문
    RS140-SUP-H-2L47,520----견적의뢰 / 주문
    RS140-SUP-H-3L76,120----견적의뢰 / 주문
    RS160-SUP-H-1L29,040----견적의뢰 / 주문
    RS160-SUP-H-2L72,820----견적의뢰 / 주문
    RS160-SUP-H-3L115,500----견적의뢰 / 주문
    RS200-SUP-H-1L68,200----견적의뢰 / 주문
    RS200-SUP-H-2L170,500----견적의뢰 / 주문
    RS200-SUP-H-3L270,600----견적의뢰 / 주문
    RS240-SUP-H-1L139,700----견적의뢰 / 주문
    RS240-SUP-H-2L349,800----견적의뢰 / 주문
    RS240-SUP-H-3L561,000----견적의뢰 / 주문
    RS80-SUP-H-1-JLP7,414----견적의뢰 / 주문
    RS80-SUP-H-2-JLP20,020----견적의뢰 / 주문
    RS80-SUP-H-3-JLP31,680----견적의뢰 / 주문
    RS100-SUP-H-1-JLP12,870----견적의뢰 / 주문
    RS100-SUP-H-2-JLP35,640----견적의뢰 / 주문
    RS100-SUP-H-3-JLP56,320----견적의뢰 / 주문
    RS120-SUP-H-1-JLP21,560----견적의뢰 / 주문
    RS120-SUP-H-2-JLP53,460----견적의뢰 / 주문
    RS120-SUP-H-3-JLP85,140----견적의뢰 / 주문
    RS140-SUP-H-1-JLP30,580----견적의뢰 / 주문
    RS140-SUP-H-2-JLP74,580----견적의뢰 / 주문
    RS140-SUP-H-3-JLP119,900----견적의뢰 / 주문
    RS160-SUP-H-1-JLP43,780----견적의뢰 / 주문
    RS160-SUP-H-2-JLP109,120----견적의뢰 / 주문
    RS160-SUP-H-3-JLP172,700----견적의뢰 / 주문
    RS200-SUP-H-1-JLP115,500----견적의뢰 / 주문
    RS200-SUP-H-2-JLP255,200----견적의뢰 / 주문
    RS200-SUP-H-3-JLP404,800----견적의뢰 / 주문
    RS240-SUP-H-1-JLP224,400----견적의뢰 / 주문
    RS240-SUP-H-2-JLP492,800----견적의뢰 / 주문
    RS240-SUP-H-3-JLP785,400----견적의뢰 / 주문
