상품 상세보기 : 다이슬라이드 - 다이슬라이드 부시 HA

HOME > 축수 > 드라이베어링 > 다이슬라이드 > 다이슬라이드 부시 HA

다이슬라이드

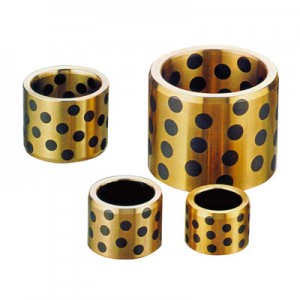

다이슬라이드 부시 HA

다이도메탈공업(주) ( DAIDO METAL )

공통사양

캐드자료

카탈로그

관련이미지

상세사양


295건 중 1~295건 표시

형식	부시치수	부시치수	부시치수	부시치수	부시치수	부시치수
형식	내경	내경	외경	외경	길이	길이
형식	(mm)	공차	(mm)	공차	(mm)	공차
HA081208	8	0.028/0.013	12	0.018/0.007	8	-0.1/-0.3
HA081210	8	0.028/0.013	12	0.018/0.007	10	-0.1/-0.3
HA081212	8	0.028/0.013	12	0.018/0.007	12	-0.1/-0.3
HA081215	8	0.028/0.013	12	0.018/0.007	15	-0.1/-0.3
HA101408	10	0.028/0.013	14	0.018/0.007	8	-0.1/-0.3
HA101410	10	0.028/0.013	14	0.018/0.007	10	-0.1/-0.3
HA101412	10	0.028/0.013	14	0.018/0.007	12	-0.1/-0.3
HA101415	10	0.028/0.013	14	0.018/0.007	15	-0.1/-0.3
HA101420	10	0.028/0.013	14	0.018/0.007	20	-0.1/-0.3
HA121808	12	0.034/0.016	18	0.018/0.007	8	-0.1/-0.3
HA121810	12	0.034/0.016	18	0.018/0.007	10	-0.1/-0.3
HA121812	12	0.034/0.016	18	0.018/0.007	12	-0.1/-0.3
HA121815	12	0.034/0.016	18	0.018/0.007	15	-0.1/-0.3
HA121816	12	0.034/0.016	18	0.018/0.007	16	-0.1/-0.3
HA121819	12	0.034/0.016	18	0.018/0.007	19	-0.1/-0.3
HA121820	12	0.034/0.016	18	0.018/0.007	20	-0.1/-0.3
HA121825	12	0.034/0.016	18	0.018/0.007	25	-0.1/-0.3
HA121830	12	0.034/0.016	18	0.018/0.007	30	-0.1/-0.3
HA131910	13	0.034/0.016	19	0.021/0.008	10	-0.1/-0.3
HA131912	13	0.034/0.016	19	0.021/0.008	12	-0.1/-0.3
HA131915	13	0.034/0.016	19	0.021/0.008	15	-0.1/-0.3
HA131920	13	0.034/0.016	19	0.021/0.008	20	-0.1/-0.3
HA142010	14	0.034/0.016	20	0.021/0.008	10	-0.1/-0.3
HA142012	14	0.034/0.016	20	0.021/0.008	12	-0.1/-0.3
HA142015	14	0.034/0.016	20	0.021/0.008	15	-0.1/-0.3
HA142020	14	0.034/0.016	20	0.021/0.008	20	-0.1/-0.3
HA142025	14	0.034/0.016	20	0.021/0.008	25	-0.1/-0.3
HA142030	14	0.034/0.016	20	0.021/0.008	30	-0.1/-0.3
HA152110	15	0.034/0.016	21	0.021/0.008	10	-0.1/-0.3
HA152112	15	0.034/0.016	21	0.021/0.008	12	-0.1/-0.3
HA152115	15	0.034/0.016	21	0.021/0.008	15	-0.1/-0.3
HA152116	15	0.034/0.016	21	0.021/0.008	16	-0.1/-0.3
HA152120	15	0.034/0.016	21	0.021/0.008	20	-0.1/-0.3
HA152125	15	0.034/0.016	21	0.021/0.008	25	-0.1/-0.3
HA152130	15	0.034/0.016	21	0.021/0.008	30	-0.1/-0.3
HA162210	16	0.034/0.016	22	0.021/0.008	10	-0.1/-0.3
HA162212	16	0.034/0.016	22	0.021/0.008	12	-0.1/-0.3
HA162215	16	0.034/0.016	22	0.021/0.008	15	-0.1/-0.3
HA162216	16	0.034/0.016	22	0.021/0.008	16	-0.1/-0.3
HA162219	16	0.034/0.016	22	0.021/0.008	19	-0.1/-0.3
HA162220	16	0.034/0.016	22	0.021/0.008	20	-0.1/-0.3
HA162225	16	0.034/0.016	22	0.021/0.008	25	-0.1/-0.3
HA162230	16	0.034/0.016	22	0.021/0.008	30	-0.1/-0.3
HA162235	16	0.034/0.016	22	0.021/0.008	35	-0.1/-0.3
HA162240	16	0.034/0.016	22	0.021/0.008	40	-0.1/-0.3
HA172315	17	0.034/0.016	23	0.021/0.008	15	-0.1/-0.3
HA182412	18	0.034/0.016	24	0.021/0.008	12	-0.1/-0.3
HA182415	18	0.034/0.016	24	0.021/0.008	15	-0.1/-0.3
HA182416	18	0.034/0.016	24	0.021/0.008	16	-0.1/-0.3
HA182420	18	0.034/0.016	24	0.021/0.008	20	-0.1/-0.3
HA182425	18	0.034/0.016	24	0.021/0.008	25	-0.1/-0.3
HA182430	18	0.034/0.016	24	0.021/0.008	30	-0.1/-0.3
HA192615	19	0.041/0.02	26	0.021/0.008	15	-0.1/-0.3
HA192620	19	0.041/0.02	26	0.021/0.008	20	-0.1/-0.3
HA202810	20	0.041/0.02	28	0.021/0.008	10	-0.1/-0.3
HA202812	20	0.041/0.02	28	0.021/0.008	12	-0.1/-0.3
HA202815	20	0.041/0.02	28	0.021/0.008	15	-0.1/-0.3
HA202816	20	0.041/0.02	28	0.021/0.008	16	-0.1/-0.3
HA202819	20	0.041/0.02	28	0.021/0.008	19	-0.1/-0.3
HA202820	20	0.041/0.02	28	0.021/0.008	20	-0.1/-0.3
HA202825	20	0.041/0.02	28	0.021/0.008	25	-0.1/-0.3
HA202830	20	0.041/0.02	28	0.021/0.008	30	-0.1/-0.3
HA202835	20	0.041/0.02	28	0.021/0.008	35	-0.1/-0.3
HA202840	20	0.041/0.02	28	0.021/0.008	40	-0.1/-0.3
HA202850	20	0.041/0.02	28	0.021/0.008	50	-0.1/-0.3
HA203016	20	0.041/0.02	30	0.021/0.008	16	-0.1/-0.3
HA203020	20	0.041/0.02	30	0.021/0.008	20	-0.1/-0.3
HA203025	20	0.041/0.02	30	0.021/0.008	25	-0.1/-0.3
HA203030	20	0.041/0.02	30	0.021/0.008	30	-0.1/-0.3
HA203035	20	0.041/0.02	30	0.021/0.008	35	-0.1/-0.3
HA203040	20	0.041/0.02	30	0.021/0.008	40	-0.1/-0.3
HA223212	22	0.041/0.02	32	0.025/0.009	12	-0.1/-0.3
HA223215	22	0.041/0.02	32	0.025/0.009	15	-0.1/-0.3
HA223220	22	0.041/0.02	32	0.025/0.009	20	-0.1/-0.3
HA223225	22	0.041/0.02	32	0.025/0.009	25	-0.1/-0.3
HA253312	25	0.041/0.02	33	0.025/0.009	12	-0.1/-0.3
HA253315	25	0.041/0.02	33	0.025/0.009	15	-0.1/-0.3
HA253316	25	0.041/0.02	33	0.025/0.009	16	-0.1/-0.3
HA253320	25	0.041/0.02	33	0.025/0.009	20	-0.1/-0.3
HA253325	25	0.041/0.02	33	0.025/0.009	25	-0.1/-0.3
HA253330	25	0.041/0.02	33	0.025/0.009	30	-0.1/-0.3
HA253335	25	0.041/0.02	33	0.025/0.009	35	-0.1/-0.3
HA253340	25	0.041/0.02	33	0.025/0.009	40	-0.1/-0.3
HA253350	25	0.041/0.02	33	0.025/0.009	50	-0.1/-0.3
HA253360	25	0.041/0.02	33	0.025/0.009	60	-0.1/-0.3
HA253512	25	0.041/0.02	35	0.025/0.009	12	-0.1/-0.3
HA253515	25	0.041/0.02	35	0.025/0.009	15	-0.1/-0.3
HA253516	25	0.041/0.02	35	0.025/0.009	16	-0.1/-0.3
HA253520	25	0.041/0.02	35	0.025/0.009	20	-0.1/-0.3
HA253525	25	0.041/0.02	35	0.025/0.009	25	-0.1/-0.3
HA253530	25	0.041/0.02	35	0.025/0.009	30	-0.1/-0.3
HA253535	25	0.041/0.02	35	0.025/0.009	35	-0.1/-0.3
HA253540	25	0.041/0.02	35	0.025/0.009	40	-0.1/-0.3
HA253550	25	0.041/0.02	35	0.025/0.009	50	-0.1/-0.3
HA283820	28	0.041/0.02	38	0.025/0.009	20	-0.1/-0.3
HA283825	28	0.041/0.02	38	0.025/0.009	25	-0.1/-0.3
HA283830	28	0.041/0.02	38	0.025/0.009	30	-0.1/-0.3
HA283840	28	0.041/0.02	38	0.025/0.009	40	-0.1/-0.3
HA303812	30	0.041/0.02	38	0.025/0.009	12	-0.1/-0.3
HA303815	30	0.041/0.02	38	0.025/0.009	15	-0.1/-0.3
HA303820	30	0.041/0.02	38	0.025/0.009	20	-0.1/-0.3
HA303825	30	0.041/0.02	38	0.025/0.009	25	-0.1/-0.3
HA303830	30	0.041/0.02	38	0.025/0.009	30	-0.1/-0.3
HA303835	30	0.041/0.02	38	0.025/0.009	35	-0.1/-0.3
HA303840	30	0.041/0.02	38	0.025/0.009	40	-0.1/-0.3
HA303850	30	0.041/0.02	38	0.025/0.009	50	-0.1/-0.3
HA303860	30	0.041/0.02	38	0.025/0.009	60	-0.1/-0.3
HA304012	30	0.041/0.02	40	0.025/0.009	12	-0.1/-0.3
HA304015	30	0.041/0.02	40	0.025/0.009	15	-0.1/-0.3
HA304020	30	0.041/0.02	40	0.025/0.009	20	-0.1/-0.3
HA304025	30	0.041/0.02	40	0.025/0.009	25	-0.1/-0.3
HA304030	30	0.041/0.02	40	0.025/0.009	30	-0.1/-0.3
HA304035	30	0.041/0.02	40	0.025/0.009	35	-0.1/-0.3
HA304040	30	0.041/0.02	40	0.025/0.009	40	-0.1/-0.3
HA304050	30	0.041/0.02	40	0.025/0.009	50	-0.1/-0.3
HA304060	30	0.041/0.02	40	0.025/0.009	60	-0.1/-0.3
HA314030	31.5	0.05/0.025	40	0.025/0.009	30	-0.1/-0.3
HA314040	31.5	0.05/0.025	40	0.025/0.009	40	-0.1/-0.3
HA324220	32	0.05/0.025	42	0.025/0.009	20	-0.1/-0.3
HA324230	32	0.05/0.025	42	0.025/0.009	30	-0.1/-0.3
HA324240	32	0.05/0.025	42	0.025/0.009	40	-0.1/-0.3
HA354420	35	0.05/0.025	44	0.025/0.009	20	-0.1/-0.3
HA354425	35	0.05/0.025	44	0.025/0.009	25	-0.1/-0.3
HA354430	35	0.05/0.025	44	0.025/0.009	30	-0.1/-0.3
HA354435	35	0.05/0.025	44	0.025/0.009	35	-0.1/-0.3
HA354440	35	0.05/0.025	44	0.025/0.009	40	-0.1/-0.3
HA354450	35	0.05/0.025	44	0.025/0.009	50	-0.1/-0.3
HA354460	35	0.05/0.025	44	0.025/0.009	60	-0.1/-0.3
HA354520	35	0.05/0.025	45	0.025/0.009	20	-0.1/-0.3
HA354525	35	0.05/0.025	45	0.025/0.009	25	-0.1/-0.3
HA354530	35	0.05/0.025	45	0.025/0.009	30	-0.1/-0.3
HA354535	35	0.05/0.025	45	0.025/0.009	35	-0.1/-0.3
HA354540	35	0.05/0.025	45	0.025/0.009	40	-0.1/-0.3
HA354550	35	0.05/0.025	45	0.025/0.009	50	-0.1/-0.3
HA354560	35	0.05/0.025	45	0.025/0.009	60	-0.1/-0.3
HA384840	38	0.05/0.025	48	0.025/0.009	40	-0.1/-0.3
HA405015	40	0.05/0.025	50	0.025/0.009	15	-0.1/-0.3
HA405020	40	0.05/0.025	50	0.025/0.009	20	-0.1/-0.3
HA405025	40	0.05/0.025	50	0.025/0.009	25	-0.1/-0.3
HA405030	40	0.05/0.025	50	0.025/0.009	30	-0.1/-0.3
HA405035	40	0.05/0.025	50	0.025/0.009	35	-0.1/-0.3
HA405040	40	0.05/0.025	50	0.025/0.009	40	-0.1/-0.3
HA405050	40	0.05/0.025	50	0.025/0.009	50	-0.1/-0.3
HA405060	40	0.05/0.025	50	0.025/0.009	60	-0.1/-0.3
HA405070	40	0.05/0.025	50	0.025/0.009	70	-0.1/-0.3
HA405080	40	0.05/0.025	50	0.025/0.009	80	-0.1/-0.3
HA405515	40	0.05/0.025	55	0.03/0.011	15	-0.1/-0.3
HA405530	40	0.05/0.025	55	0.03/0.011	30	-0.1/-0.3
HA405535	40	0.05/0.025	55	0.03/0.011	35	-0.1/-0.3
HA405540	40	0.05/0.025	55	0.03/0.011	40	-0.1/-0.3
HA405550	40	0.05/0.025	55	0.03/0.011	50	-0.1/-0.3
HA405560	40	0.05/0.025	55	0.03/0.011	60	-0.1/-0.3
HA455530	45	0.05/0.025	55	0.03/0.011	30	-0.1/-0.3
HA455535	45	0.05/0.025	55	0.03/0.011	35	-0.1/-0.3
HA455540	45	0.05/0.025	55	0.03/0.011	40	-0.1/-0.3
HA455550	45	0.05/0.025	55	0.03/0.011	50	-0.1/-0.3
HA455560	45	0.05/0.025	55	0.03/0.011	60	-0.1/-0.3
HA455630	45	0.05/0.025	56	0.03/0.011	30	-0.1/-0.3
HA455635	45	0.05/0.025	56	0.03/0.011	35	-0.1/-0.3
HA455640	45	0.05/0.025	56	0.03/0.011	40	-0.1/-0.3
HA455650	45	0.05/0.025	56	0.03/0.011	50	-0.1/-0.3
HA455660	45	0.05/0.025	56	0.03/0.011	60	-0.1/-0.3
HA456030	45	0.05/0.025	60	0.03/0.011	30	-0.1/-0.3
HA456035	45	0.05/0.025	60	0.03/0.011	35	-0.1/-0.3
HA456040	45	0.05/0.025	60	0.03/0.011	40	-0.1/-0.3
HA456050	45	0.05/0.025	60	0.03/0.011	50	-0.1/-0.3
HA456060	45	0.05/0.025	60	0.03/0.011	60	-0.1/-0.3
HA456070	45	0.05/0.025	60	0.03/0.011	70	-0.1/-0.3
HA456080	45	0.05/0.025	60	0.03/0.011	80	-0.1/-0.3
HA506020	50	0.05/0.025	60	0.03/0.011	20	-0.1/-0.3
HA506030	50	0.05/0.025	60	0.03/0.011	30	-0.1/-0.3
HA506035	50	0.05/0.025	60	0.03/0.011	35	-0.1/-0.3
HA506040	50	0.05/0.025	60	0.03/0.011	40	-0.1/-0.3
HA506050	50	0.05/0.025	60	0.03/0.011	50	-0.1/-0.3
HA506060	50	0.05/0.025	60	0.03/0.011	60	-0.1/-0.3
HA506070	50	0.05/0.025	60	0.03/0.011	70	-0.1/-0.3
HA506080	50	0.05/0.025	60	0.03/0.011	80	-0.1/-0.3
HA506230	50	0.05/0.025	62	0.03/0.011	30	-0.1/-0.3
HA506235	50	0.05/0.025	62	0.03/0.011	35	-0.1/-0.3
HA506240	50	0.05/0.025	62	0.03/0.011	40	-0.1/-0.3
HA506250	50	0.05/0.025	62	0.03/0.011	50	-0.1/-0.3
HA506260	50	0.05/0.025	62	0.03/0.011	60	-0.1/-0.3
HA506270	50	0.05/0.025	62	0.03/0.011	70	-0.1/-0.3
HA506530	50	0.05/0.025	65	0.03/0.011	30	-0.1/-0.3
HA506540	50	0.05/0.025	65	0.03/0.011	40	-0.1/-0.3
HA506550	50	0.05/0.025	65	0.03/0.011	50	-0.1/-0.3
HA506560	50	0.05/0.025	65	0.03/0.011	60	-0.1/-0.3
HA506570	50	0.05/0.025	65	0.03/0.011	70	-0.1/-0.3
HA506580	50	0.05/0.025	65	0.03/0.011	80	-0.1/-0.3
HA5065100	50	0.05/0.025	65	0.03/0.011	100	-0.1/-0.3
HA557030	55	0.06/0.03	70	0.03/0.011	30	-0.1/-0.3
HA557035	55	0.06/0.03	70	0.03/0.011	35	-0.1/-0.3
HA557040	55	0.06/0.03	70	0.03/0.011	40	-0.1/-0.3
HA557050	55	0.06/0.03	70	0.03/0.011	50	-0.1/-0.3
HA557060	55	0.06/0.03	70	0.03/0.011	60	-0.1/-0.3
HA557070	55	0.06/0.03	70	0.03/0.011	70	-0.1/-0.3
HA607430	60	0.06/0.03	74	0.03/0.011	30	-0.1/-0.3
HA607435	60	0.06/0.03	74	0.03/0.011	35	-0.1/-0.3
HA607440	60	0.06/0.03	74	0.03/0.011	40	-0.1/-0.3
HA607450	60	0.06/0.03	74	0.03/0.011	50	-0.1/-0.3
HA607460	60	0.06/0.03	74	0.03/0.011	60	-0.1/-0.3
HA607470	60	0.06/0.03	74	0.03/0.011	70	-0.1/-0.3
HA607480	60	0.06/0.03	74	0.03/0.011	80	-0.1/-0.3
HA607530	60	0.06/0.03	75	0.03/0.011	30	-0.1/-0.3
HA607535	60	0.06/0.03	75	0.03/0.011	35	-0.1/-0.3
HA607540	60	0.06/0.03	75	0.03/0.011	40	-0.1/-0.3
HA607550	60	0.06/0.03	75	0.03/0.011	50	-0.1/-0.3
HA607560	60	0.06/0.03	75	0.03/0.011	60	-0.1/-0.3
HA607570	60	0.06/0.03	75	0.03/0.011	70	-0.1/-0.3
HA607580	60	0.06/0.03	75	0.03/0.011	80	-0.1/-0.3
HA6075100	60	0.06/0.03	75	0.03/0.011	100	-0.1/-0.3
HA637560	63	0.06/0.03	75	0.03/0.011	60	-0.1/-0.3
HA637570	63	0.06/0.03	75	0.03/0.011	70	-0.1/-0.3
HA637580	63	0.06/0.03	75	0.03/0.011	80	-0.1/-0.3
HA658040	65	0.06/0.03	80	0.03/0.011	40	-0.1/-0.3
HA658050	65	0.06/0.03	80	0.03/0.011	50	-0.1/-0.3
HA658060	65	0.06/0.03	80	0.03/0.011	60	-0.1/-0.3
HA658070	65	0.06/0.03	80	0.03/0.011	70	-0.1/-0.3
HA658080	65	0.06/0.03	80	0.03/0.011	80	-0.1/-0.3
HA708530	70	0.06/0.03	85	0.035/0.013	30	-0.1/-0.3
HA708535	70	0.06/0.03	85	0.035/0.013	35	-0.1/-0.3
HA708540	70	0.06/0.03	85	0.035/0.013	40	-0.1/-0.3
HA708550	70	0.06/0.03	85	0.035/0.013	50	-0.1/-0.3
HA708560	70	0.06/0.03	85	0.035/0.013	60	-0.1/-0.3
HA708570	70	0.06/0.03	85	0.035/0.013	70	-0.1/-0.3
HA708580	70	0.06/0.03	85	0.035/0.013	80	-0.1/-0.3
HA7085100	70	0.06/0.03	85	0.035/0.013	100	-0.1/-0.3
HA709050	70	0.06/0.03	90	0.035/0.013	50	-0.1/-0.3
HA709060	70	0.06/0.03	90	0.035/0.013	60	-0.1/-0.3
HA709070	70	0.06/0.03	90	0.035/0.013	70	-0.1/-0.3
HA709080	70	0.06/0.03	90	0.035/0.013	80	-0.1/-0.3
HA759050	75	0.05/0.025	90	0.035/0.013	50	-0.1/-0.3
HA759060	75	0.05/0.025	90	0.035/0.013	60	-0.1/-0.3
HA759070	75	0.05/0.025	90	0.035/0.013	70	-0.1/-0.3
HA759080	75	0.05/0.025	90	0.035/0.013	80	-0.1/-0.3
HA7590100	75	0.05/0.025	90	0.035/0.013	100	-0.1/-0.3
HA759560	75	0.05/0.025	95	0.035/0.013	60	-0.1/-0.3
HA759570	75	0.05/0.025	95	0.035/0.013	70	-0.1/-0.3
HA759580	75	0.05/0.025	95	0.035/0.013	80	-0.1/-0.3
HA7595100	75	0.05/0.025	95	0.035/0.013	100	-0.1/-0.3
HA809640	80	0.05/0.025	96	0.035/0.013	40	-0.1/-0.3
HA809650	80	0.05/0.025	96	0.035/0.013	50	-0.1/-0.3
HA809660	80	0.05/0.025	96	0.035/0.013	60	-0.1/-0.3
HA809670	80	0.05/0.025	96	0.035/0.013	70	-0.1/-0.3
HA809680	80	0.05/0.025	96	0.035/0.013	80	-0.1/-0.3
HA8096100	80	0.05/0.025	96	0.035/0.013	100	-0.1/-0.3
HA8096120	80	0.05/0.025	96	0.035/0.013	120	-0.1/-0.3
HA8010040	80	0.05/0.025	100	0.035/0.013	40	-0.1/-0.3
HA8010050	80	0.05/0.025	100	0.035/0.013	50	-0.1/-0.3
HA8010060	80	0.05/0.025	100	0.035/0.013	60	-0.1/-0.3
HA8010070	80	0.05/0.025	100	0.035/0.013	70	-0.1/-0.3
HA8010080	80	0.05/0.025	100	0.035/0.013	80	-0.1/-0.3
HA80100100	80	0.05/0.025	100	0.035/0.013	100	-0.1/-0.3
HA80100120	80	0.05/0.025	100	0.035/0.013	120	-0.1/-0.3
HA80100140	80	0.05/0.025	100	0.035/0.013	140	-0.1/-0.3
HA8510060	85	0.071/0.036	100	0.035/0.013	60	-0.1/-0.3
HA8510080	85	0.071/0.036	100	0.035/0.013	80	-0.1/-0.3
HA9011050	90	0.071/0.036	110	0.035/0.013	50	-0.1/-0.3
HA9011060	90	0.071/0.036	110	0.035/0.013	60	-0.1/-0.3
HA9011080	90	0.071/0.036	110	0.035/0.013	80	-0.1/-0.3
HA9011090	90	0.071/0.036	110	0.035/0.013	90	-0.1/-0.3
HA90110100	90	0.071/0.036	110	0.035/0.013	100	-0.1/-0.3
HA90110120	90	0.071/0.036	110	0.035/0.013	120	-0.1/-0.3
HA10012050	100	0.071/0.036	120	0.035/0.013	50	-0.1/-0.3
HA10012060	100	0.071/0.036	120	0.035/0.013	60	-0.1/-0.3
HA10012070	100	0.071/0.036	120	0.035/0.013	70	-0.1/-0.3
HA10012080	100	0.071/0.036	120	0.035/0.013	80	-0.1/-0.3
HA10012090	100	0.071/0.036	120	0.035/0.013	90	-0.1/-0.3
HA100120100	100	0.071/0.036	120	0.035/0.013	100	-0.1/-0.3
HA100120120	100	0.071/0.036	120	0.035/0.013	120	-0.1/-0.3
HA100120140	100	0.071/0.036	120	0.035/0.013	140	-0.1/-0.3
HA11013050	110	0.071/0.036	130	0.04/0.015	50	-0.1/-0.3
HA11013070	110	0.071/0.036	130	0.04/0.015	70	-0.1/-0.3
HA11013080	110	0.071/0.036	130	0.04/0.015	80	-0.1/-0.3
HA110130100	110	0.071/0.036	130	0.04/0.015	100	-0.1/-0.3
HA110130120	110	0.071/0.036	130	0.04/0.015	120	-0.1/-0.3
HA12014070	120	0.071/0.036	140	0.04/0.015	70	-0.1/-0.3
HA12014080	120	0.071/0.036	140	0.04/0.015	80	-0.1/-0.3
HA12014090	120	0.071/0.036	140	0.04/0.015	90	-0.1/-0.3
HA120140100	120	0.071/0.036	140	0.04/0.015	100	-0.1/-0.3
HA120140120	120	0.071/0.036	140	0.04/0.015	120	-0.1/-0.3
HA120140140	120	0.071/0.036	140	0.04/0.015	140	-0.1/-0.3
HA125145100	125	0.083/0.043	145	0.04/0.015	100	-0.1/-0.3
HA125145120	125	0.083/0.043	145	0.04/0.015	120	-0.1/-0.3
HA13015080	130	0.083/0.043	150	0.04/0.015	80	-0.1/-0.3
HA130150100	130	0.083/0.043	150	0.04/0.015	100	-0.1/-0.3
HA130150130	130	0.083/0.043	150	0.04/0.015	130	-0.1/-0.3
HA140160100	140	0.083/0.043	160	0.04/0.015	100	-0.1/-0.3
HA140160140	140	0.083/0.043	160	0.04/0.015	140	-0.1/-0.3
HA15017080	150	0.083/0.043	170	0.04/0.015	80	-0.1/-0.3
HA150170100	150	0.083/0.043	170	0.04/0.015	100	-0.1/-0.3
HA150170150	150	0.083/0.043	170	0.04/0.015	150	-0.1/-0.3
HA16018080	160	0.083/0.043	180	0.04/0.015	80	-0.1/-0.3
HA160180100	160	0.083/0.043	180	0.04/0.015	100	-0.1/-0.3
HA160180150	160	0.083/0.043	180	0.04/0.015	150	-0.1/-0.3

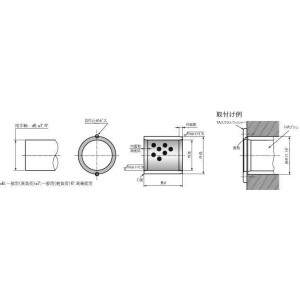

형식	부시치수	부시치수	부시치수	추천상대치수(하우징내경)	추천상대치수(하우징내경)
형식	C면	압입측외면취	내면취	(mm)	공차
형식	C면	압입측외면취	내면취	(mm)	공차
HA081208	C0.5	0.75×15°	1×10°	12	H7(+0.018/0)
HA081210	C0.5	0.75×15°	1×10°	12	H7(+0.018/0)
HA081212	C0.5	0.75×15°	1×10°	12	H7(+0.018/0)
HA081215	C0.5	0.75×15°	1×10°	12	H7(+0.018/0)
HA101408	C0.5	0.75×15°	1×10°	14	H7(+0.018/0)
HA101410	C0.5	0.75×15°	1×10°	14	H7(+0.018/0)
HA101412	C0.5	0.75×15°	1×10°	14	H7(+0.018/0)
HA101415	C0.5	0.75×15°	1×10°	14	H7(+0.018/0)
HA101420	C0.5	0.75×15°	1×10°	14	H7(+0.018/0)
HA121808	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121810	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121812	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121815	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121816	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121819	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121820	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121825	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA121830	C0.5	2×15°	2×10°	18	H7(+0.018/0)
HA131910	C0.5	2×15°	2×10°	19	H7(+0.021/0)
HA131912	C0.5	2×15°	2×10°	19	H7(+0.021/0)
HA131915	C0.5	2×15°	2×10°	19	H7(+0.021/0)
HA131920	C0.5	2×15°	2×10°	19	H7(+0.021/0)
HA142010	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA142012	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA142015	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA142020	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA142025	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA142030	C0.5	2×15°	2×10°	20	H7(+0.021/0)
HA152110	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152112	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152115	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152116	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152120	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152125	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA152130	C0.5	2×15°	2×10°	21	H7(+0.021/0)
HA162210	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162212	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162215	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162216	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162219	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162220	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162225	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162230	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162235	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA162240	C0.5	2×15°	2×10°	22	H7(+0.021/0)
HA172315	C0.5	2×15°	2×10°	23	H7(+0.021/0)
HA182412	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA182415	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA182416	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA182420	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA182425	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA182430	C0.5	2×15°	2×10°	24	H7(+0.021/0)
HA192615	C0.5	2×15°	2×10°	26	H7(+0.021/0)
HA192620	C0.5	2×15°	2×10°	26	H7(+0.021/0)
HA202810	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202812	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202815	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202816	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202819	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202820	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202825	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202830	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202835	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202840	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA202850	C0.5	2×15°	2.5×10°	28	H7(+0.021/0)
HA203016	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA203020	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA203025	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA203030	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA203035	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA203040	C0.5	2×15°	2.5×10°	30	H7(+0.021/0)
HA223212	C0.5	2.5×15°	2.5×10°	32	H7(+0.025/0)
HA223215	C0.5	2.5×15°	2.5×10°	32	H7(+0.025/0)
HA223220	C0.5	2.5×15°	2.5×10°	32	H7(+0.025/0)
HA223225	C0.5	2.5×15°	2.5×10°	32	H7(+0.025/0)
HA253312	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253315	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253316	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253320	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253325	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253330	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253335	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253340	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253350	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253360	C0.5	2.5×15°	2.5×10°	33	H7(+0.025/0)
HA253512	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253515	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253516	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253520	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253525	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253530	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253535	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253540	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA253550	C0.5	2.5×15°	2.5×10°	35	H7(+0.025/0)
HA283820	C0.5	2.5×15°	2.5×10°	38	H7(+0.025/0)
HA283825	C0.5	2.5×15°	2.5×10°	38	H7(+0.025/0)
HA283830	C0.5	2.5×15°	2.5×10°	38	H7(+0.025/0)
HA283840	C0.5	2.5×15°	2.5×10°	38	H7(+0.025/0)
HA303812	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303815	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303820	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303825	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303830	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303835	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303840	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303850	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA303860	C0.5	3×15°	3×10°	38	H7(+0.025/0)
HA304012	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304015	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304020	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304025	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304030	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304035	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304040	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304050	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA304060	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA314030	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA314040	C0.5	3×15°	3×10°	40	H7(+0.025/0)
HA324220	C0.5	3×15°	3×10°	42	H7(+0.025/0)
HA324230	C0.5	3×15°	3×10°	42	H7(+0.025/0)
HA324240	C0.5	3×15°	3×10°	42	H7(+0.025/0)
HA354420	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354425	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354430	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354435	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354440	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354450	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354460	C0.5	3×15°	3×10°	44	H7(+0.025/0)
HA354520	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354525	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354530	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354535	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354540	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354550	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA354560	C0.5	3×15°	3×10°	45	H7(+0.025/0)
HA384840	C0.5	3×15°	3×10°	48	H7(+0.025/0)
HA405015	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405020	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405025	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405030	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405035	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405040	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405050	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405060	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405070	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405080	C0.5	3×15°	3×10°	50	H7(+0.025/0)
HA405515	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA405530	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA405535	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA405540	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA405550	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA405560	C0.5	3×15°	3×10°	55	H7(+0.030/0)
HA455530	C0.5	3.5×15°	3.5×10°	55	H7(+0.030/0)
HA455535	C0.5	3.5×15°	3.5×10°	55	H7(+0.030/0)
HA455540	C0.5	3.5×15°	3.5×10°	55	H7(+0.030/0)
HA455550	C0.5	3.5×15°	3.5×10°	55	H7(+0.030/0)
HA455560	C0.5	3.5×15°	3.5×10°	55	H7(+0.030/0)
HA455630	C0.5	3.5×15°	3.5×10°	56	H7(+0.030/0)
HA455635	C0.5	3.5×15°	3.5×10°	56	H7(+0.030/0)
HA455640	C0.5	3.5×15°	3.5×10°	56	H7(+0.030/0)
HA455650	C0.5	3.5×15°	3.5×10°	56	H7(+0.030/0)
HA455660	C0.5	3.5×15°	3.5×10°	56	H7(+0.030/0)
HA456030	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456035	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456040	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456050	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456060	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456070	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA456080	C0.5	3.5×15°	3.5×10°	60	H7(+0.030/0)
HA506020	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506030	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506035	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506040	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506050	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506060	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506070	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506080	C0.5	4×15°	4×10°	60	H7(+0.030/0)
HA506230	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506235	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506240	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506250	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506260	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506270	C0.5	4×15°	4×10°	62	H7(+0.030/0)
HA506530	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA506540	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA506550	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA506560	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA506570	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA506580	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA5065100	C0.5	4×15°	4×10°	65	H7(+0.030/0)
HA557030	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA557035	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA557040	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA557050	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA557060	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA557070	C0.5	4×15°	4×10°	70	H7(+0.030/0)
HA607430	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607435	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607440	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607450	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607460	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607470	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607480	C0.5	4×15°	4×10°	74	H7(+0.030/0)
HA607530	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607535	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607540	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607550	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607560	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607570	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA607580	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA6075100	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA637560	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA637570	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA637580	C0.5	4×15°	4×10°	75	H7(+0.030/0)
HA658040	C0.5	4×15°	4×10°	80	H7(+0.030/0)
HA658050	C0.5	4×15°	4×10°	80	H7(+0.030/0)
HA658060	C0.5	4×15°	4×10°	80	H7(+0.030/0)
HA658070	C0.5	4×15°	4×10°	80	H7(+0.030/0)
HA658080	C0.5	4×15°	4×10°	80	H7(+0.030/0)
HA708530	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708535	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708540	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708550	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708560	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708570	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA708580	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA7085100	C0.5	4×15°	4×10°	85	H7(+0.030/0)
HA709050	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA709060	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA709070	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA709080	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA759050	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA759060	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA759070	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA759080	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA7590100	C0.5	4×15°	4×10°	90	H7(+0.035/0)
HA759560	C0.5	4×15°	4×10°	95	H7(+0.035/0)
HA759570	C0.5	4×15°	4×10°	95	H7(+0.035/0)
HA759580	C0.5	4×15°	4×10°	95	H7(+0.035/0)
HA7595100	C0.5	4×15°	4×10°	95	H7(+0.035/0)
HA809640	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA809650	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA809660	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA809670	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA809680	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA8096100	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA8096120	C0.5	4×15°	4×10°	96	H7(+0.035/0)
HA8010040	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA8010050	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA8010060	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA8010070	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA8010080	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA80100100	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA80100120	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA80100140	C0.5	4×15°	4×10°	100	H7(+0.035/0)
HA8510060	C1	5×15°	5×10°	100	H7(+0.035/0)
HA8510080	C1	5×15°	5×10°	100	H7(+0.035/0)
HA9011050	C1	5×15°	5×10°	110	H7(+0.035/0)
HA9011060	C1	5×15°	5×10°	110	H7(+0.035/0)
HA9011080	C1	5×15°	5×10°	110	H7(+0.035/0)
HA9011090	C1	5×15°	5×10°	110	H7(+0.035/0)
HA90110100	C1	5×15°	5×10°	110	H7(+0.035/0)
HA90110120	C1	5×15°	5×10°	110	H7(+0.035/0)
HA10012050	C1	5×15°	5×10°	120	H7(+0.035/0)
HA10012060	C1	5×15°	5×10°	120	H7(+0.035/0)
HA10012070	C1	5×15°	5×10°	120	H7(+0.035/0)
HA10012080	C1	5×15°	5×10°	120	H7(+0.035/0)
HA10012090	C1	5×15°	5×10°	120	H7(+0.035/0)
HA100120100	C1	5×15°	5×10°	120	H7(+0.035/0)
HA100120120	C1	5×15°	5×10°	120	H7(+0.035/0)
HA100120140	C1	5×15°	5×10°	120	H7(+0.035/0)
HA11013050	C1	5×15°	6×10°	130	H7(+0.040/0)
HA11013070	C1	5×15°	6×10°	130	H7(+0.040/0)
HA11013080	C1	5×15°	6×10°	130	H7(+0.040/0)
HA110130100	C1	5×15°	6×10°	130	H7(+0.040/0)
HA110130120	C1	5×15°	6×10°	130	H7(+0.040/0)
HA12014070	C1	5×15°	6×10°	140	H7(+0.040/0)
HA12014080	C1	5×15°	6×10°	140	H7(+0.040/0)
HA12014090	C1	5×15°	6×10°	140	H7(+0.040/0)
HA120140100	C1	5×15°	6×10°	140	H7(+0.040/0)
HA120140120	C1	5×15°	6×10°	140	H7(+0.040/0)
HA120140140	C1	5×15°	6×10°	140	H7(+0.040/0)
HA125145100	C1	5×15°	6×10°	145	H7(+0.040/0)
HA125145120	C1	5×15°	6×10°	145	H7(+0.040/0)
HA13015080	C1	5×15°	6×10°	150	H7(+0.040/0)
HA130150100	C1	5×15°	6×10°	150	H7(+0.040/0)
HA130150130	C1	5×15°	6×10°	150	H7(+0.040/0)
HA140160100	C1	5×15°	6×10°	160	H7(+0.040/0)
HA140160140	C1	5×15°	6×10°	160	H7(+0.040/0)
HA15017080	C1	5×15°	6×10°	170	H7(+0.040/0)
HA150170100	C1	5×15°	6×10°	170	H7(+0.040/0)
HA150170150	C1	5×15°	6×10°	170	H7(+0.040/0)
HA16018080	C1	5×15°	6×10°	180	H7(+0.040/0)
HA160180100	C1	5×15°	6×10°	180	H7(+0.040/0)
HA160180150	C1	5×15°	6×10°	180	H7(+0.040/0)

형식	추천상대치수(축경)	추천상대치수(축경)	추천상대치수(축경)	추천상대치수(축경)	추천상대치수(축경)	추천상대치수(축경)
형식	일반용(고부하)	일반용(고부하)	일반용(경부하)	일반용(경부하)	고정도용	고정도용
형식	(mm)	공차	(mm)	공차	(mm)	공차
HA081208	8	d8(-0.040/-0.062)	8	e7(-0.025/-0.040)	8	f7(-0.013/-0.028)
HA081210	8	d8(-0.040/-0.062)	8	e7(-0.025/-0.040)	8	f7(-0.013/-0.028)
HA081212	8	d8(-0.040/-0.062)	8	e7(-0.025/-0.040)	8	f7(-0.013/-0.028)
HA081215	8	d8(-0.040/-0.062)	8	e7(-0.025/-0.040)	8	f7(-0.013/-0.028)
HA101408	10	d8(-0.040/-0.062)	10	e7(-0.025/-0.040)	10	f7(-0.013/-0.028)
HA101410	10	d8(-0.040/-0.062)	10	e7(-0.025/-0.040)	10	f7(-0.013/-0.028)
HA101412	10	d8(-0.040/-0.062)	10	e7(-0.025/-0.040)	10	f7(-0.013/-0.028)
HA101415	10	d8(-0.040/-0.062)	10	e7(-0.025/-0.040)	10	f7(-0.013/-0.028)
HA101420	10	d8(-0.040/-0.062)	10	e7(-0.025/-0.040)	10	f7(-0.013/-0.028)
HA121808	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121810	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121812	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121815	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121816	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121819	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121820	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121825	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA121830	12	d8(-0.050/-0.077)	12	e7(-0.032/-0.050)	12	f7(-0.016/-0.034)
HA131910	13	d8(-0.050/-0.077)	13	e7(-0.032/-0.050)	13	f7(-0.016/-0.034)
HA131912	13	d8(-0.050/-0.077)	13	e7(-0.032/-0.050)	13	f7(-0.016/-0.034)
HA131915	13	d8(-0.050/-0.077)	13	e7(-0.032/-0.050)	13	f7(-0.016/-0.034)
HA131920	13	d8(-0.050/-0.077)	13	e7(-0.032/-0.050)	13	f7(-0.016/-0.034)
HA142010	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA142012	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA142015	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA142020	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA142025	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA142030	14	d8(-0.050/-0.077)	14	e7(-0.032/-0.050)	14	f7(-0.016/-0.034)
HA152110	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152112	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152115	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152116	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152120	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152125	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA152130	15	d8(-0.050/-0.077)	15	e7(-0.032/-0.050)	15	f7(-0.016/-0.034)
HA162210	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162212	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162215	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162216	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162219	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162220	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162225	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162230	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162235	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA162240	16	d8(-0.050/-0.077)	16	e7(-0.032/-0.050)	16	f7(-0.016/-0.034)
HA172315	17	d8(-0.050/-0.077)	17	e7(-0.032/-0.050)	17	f7(-0.016/-0.034)
HA182412	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA182415	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA182416	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA182420	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA182425	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA182430	18	d8(-0.050/-0.077)	18	e7(-0.032/-0.050)	18	f7(-0.016/-0.034)
HA192615	19	d8(-0.065/-0.098)	19	e7(-0.040/-0.061)	19	f7(-0.020/-0.041)
HA192620	19	d8(-0.065/-0.098)	19	e7(-0.040/-0.061)	19	f7(-0.020/-0.041)
HA202810	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202812	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202815	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202816	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202819	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202820	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202825	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202830	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202835	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202840	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA202850	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203016	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203020	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203025	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203030	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203035	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA203040	20	d8(-0.065/-0.098)	20	e7(-0.040/-0.061)	20	f7(-0.020/-0.041)
HA223212	22	d8(-0.065/-0.098)	22	e7(-0.040/-0.061)	22	f7(-0.020/-0.041)
HA223215	22	d8(-0.065/-0.098)	22	e7(-0.040/-0.061)	22	f7(-0.020/-0.041)
HA223220	22	d8(-0.065/-0.098)	22	e7(-0.040/-0.061)	22	f7(-0.020/-0.041)
HA223225	22	d8(-0.065/-0.098)	22	e7(-0.040/-0.061)	22	f7(-0.020/-0.041)
HA253312	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253315	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253316	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253320	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253325	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253330	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253335	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253340	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253350	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253360	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253512	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253515	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253516	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253520	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253525	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253530	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253535	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253540	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA253550	25	d8(-0.065/-0.098)	25	e7(-0.040/-0.061)	25	f7(-0.020/-0.041)
HA283820	28	d8(-0.065/-0.098)	28	e7(-0.040/-0.061)	28	f7(-0.020/-0.041)
HA283825	28	d8(-0.065/-0.098)	28	e7(-0.040/-0.061)	28	f7(-0.020/-0.041)
HA283830	28	d8(-0.065/-0.098)	28	e7(-0.040/-0.061)	28	f7(-0.020/-0.041)
HA283840	28	d8(-0.065/-0.098)	28	e7(-0.040/-0.061)	28	f7(-0.020/-0.041)
HA303812	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303815	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303820	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303825	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303830	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303835	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303840	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303850	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA303860	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304012	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304015	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304020	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304025	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304030	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304035	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304040	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304050	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA304060	30	d8(-0.065/-0.098)	30	e7(-0.040/-0.061)	30	f7(-0.020/-0.041)
HA314030	31.5	d8(-0.080/-0.119)	31.5	e7(-0.050/-0.075)	31.5	f7(-0.025/-0.050)
HA314040	31.5	d8(-0.080/-0.119)	31.5	e7(-0.050/-0.075)	31.5	f7(-0.025/-0.050)
HA324220	32	d8(-0.080/-0.119)	32	e7(-0.050/-0.075)	32	f7(-0.025/-0.050)
HA324230	32	d8(-0.080/-0.119)	32	e7(-0.050/-0.075)	32	f7(-0.025/-0.050)
HA324240	32	d8(-0.080/-0.119)	32	e7(-0.050/-0.075)	32	f7(-0.025/-0.050)
HA354420	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354425	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354430	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354435	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354440	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354450	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354460	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354520	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354525	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354530	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354535	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354540	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354550	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA354560	35	d8(-0.080/-0.119)	35	e7(-0.050/-0.075)	35	f7(-0.025/-0.050)
HA384840	38	d8(-0.080/-0.119)	38	e7(-0.050/-0.075)	38	f7(-0.025/-0.050)
HA405015	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405020	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405025	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405030	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405035	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405040	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405050	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405060	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405070	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405080	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405515	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405530	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405535	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405540	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405550	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA405560	40	d8(-0.080/-0.119)	40	e7(-0.050/-0.075)	40	f7(-0.025/-0.050)
HA455530	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455535	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455540	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455550	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455560	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455630	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455635	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455640	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455650	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA455660	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456030	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456035	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456040	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456050	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456060	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456070	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA456080	45	d8(-0.080/-0.119)	45	e7(-0.050/-0.075)	45	f7(-0.025/-0.050)
HA506020	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506030	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506035	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506040	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506050	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506060	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506070	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506080	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506230	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506235	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506240	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506250	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506260	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506270	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506530	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506540	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506550	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506560	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506570	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA506580	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA5065100	50	d8(-0.080/-0.119)	50	e7(-0.050/-0.075)	50	f7(-0.025/-0.050)
HA557030	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA557035	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA557040	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA557050	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA557060	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA557070	55	d8(-0.100/-0.146)	55	e7(-0.060/-0.090)	55	f7(-0.030/-0.060)
HA607430	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607435	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607440	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607450	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607460	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607470	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607480	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607530	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607535	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607540	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607550	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607560	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607570	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA607580	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA6075100	60	d8(-0.100/-0.146)	60	e7(-0.060/-0.090)	60	f7(-0.030/-0.060)
HA637560	63	d8(-0.100/-0.146)	63	e7(-0.060/-0.090)	63	f7(-0.030/-0.060)
HA637570	63	d8(-0.100/-0.146)	63	e7(-0.060/-0.090)	63	f7(-0.030/-0.060)
HA637580	63	d8(-0.100/-0.146)	63	e7(-0.060/-0.090)	63	f7(-0.030/-0.060)
HA658040	65	d8(-0.100/-0.146)	65	e7(-0.060/-0.090)	65	f7(-0.030/-0.060)
HA658050	65	d8(-0.100/-0.146)	65	e7(-0.060/-0.090)	65	f7(-0.030/-0.060)
HA658060	65	d8(-0.100/-0.146)	65	e7(-0.060/-0.090)	65	f7(-0.030/-0.060)
HA658070	65	d8(-0.100/-0.146)	65	e7(-0.060/-0.090)	65	f7(-0.030/-0.060)
HA658080	65	d8(-0.100/-0.146)	65	e7(-0.060/-0.090)	65	f7(-0.030/-0.060)
HA708530	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708535	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708540	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708550	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708560	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708570	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA708580	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA7085100	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA709050	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA709060	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA709070	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA709080	70	d8(-0.100/-0.146)	70	e7(-0.060/-0.090)	70	f7(-0.030/-0.060)
HA759050	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759060	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759070	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759080	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA7590100	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759560	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759570	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA759580	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA7595100	75	d8(-0.100/-0.146)	75	e7(-0.060/-0.090)	75	f7(-0.030/-0.060)
HA809640	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA809650	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA809660	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA809670	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA809680	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8096100	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8096120	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8010040	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8010050	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8010060	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8010070	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8010080	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA80100100	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA80100120	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA80100140	80	d8(-0.100/-0.146)	80	e7(-0.060/-0.090)	80	f7(-0.030/-0.060)
HA8510060	85	d8(-0.120/-0.174)	85	e7(-0.072/-0.107)	85	f7(-0.036/-0.071)
HA8510080	85	d8(-0.120/-0.174)	85	e7(-0.072/-0.107)	85	f7(-0.036/-0.071)
HA9011050	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA9011060	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA9011080	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA9011090	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA90110100	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA90110120	90	d8(-0.120/-0.174)	90	e7(-0.072/-0.107)	90	f7(-0.036/-0.071)
HA10012050	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA10012060	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA10012070	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA10012080	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA10012090	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA100120100	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA100120120	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA100120140	100	d8(-0.120/-0.174)	100	e7(-0.072/-0.107)	100	f7(-0.036/-0.071)
HA11013050	110	d8(-0.120/-0.174)	110	e7(-0.072/-0.107)	110	f7(-0.036/-0.071)
HA11013070	110	d8(-0.120/-0.174)	110	e7(-0.072/-0.107)	110	f7(-0.036/-0.071)
HA11013080	110	d8(-0.120/-0.174)	110	e7(-0.072/-0.107)	110	f7(-0.036/-0.071)
HA110130100	110	d8(-0.120/-0.174)	110	e7(-0.072/-0.107)	110	f7(-0.036/-0.071)
HA110130120	110	d8(-0.120/-0.174)	110	e7(-0.072/-0.107)	110	f7(-0.036/-0.071)
HA12014070	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA12014080	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA12014090	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA120140100	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA120140120	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA120140140	120	d8(-0.120/-0.174)	120	e7(-0.072/-0.107)	120	f7(-0.036/-0.071)
HA125145100	125	d8(-0.145/-0.208)	125	e7(-0.085/-0.125)	125	f7(-0.043/-0.083)
HA125145120	125	d8(-0.145/-0.208)	125	e7(-0.085/-0.125)	125	f7(-0.043/-0.083)
HA13015080	130	d8(-0.145/-0.208)	130	e7(-0.085/-0.125)	130	f7(-0.043/-0.083)
HA130150100	130	d8(-0.145/-0.208)	130	e7(-0.085/-0.125)	130	f7(-0.043/-0.083)
HA130150130	130	d8(-0.145/-0.208)	130	e7(-0.085/-0.125)	130	f7(-0.043/-0.083)
HA140160100	140	d8(-0.145/-0.208)	140	e7(-0.085/-0.125)	140	f7(-0.043/-0.083)
HA140160140	140	d8(-0.145/-0.208)	140	e7(-0.085/-0.125)	140	f7(-0.043/-0.083)
HA15017080	150	d8(-0.145/-0.208)	150	e7(-0.085/-0.125)	150	f7(-0.043/-0.083)
HA150170100	150	d8(-0.145/-0.208)	150	e7(-0.085/-0.125)	150	f7(-0.043/-0.083)
HA150170150	150	d8(-0.145/-0.208)	150	e7(-0.085/-0.125)	150	f7(-0.043/-0.083)
HA16018080	160	d8(-0.145/-0.208)	160	e7(-0.085/-0.125)	160	f7(-0.043/-0.083)
HA160180100	160	d8(-0.145/-0.208)	160	e7(-0.085/-0.125)	160	f7(-0.043/-0.083)
HA160180150	160	d8(-0.145/-0.208)	160	e7(-0.085/-0.125)	160	f7(-0.043/-0.083)

형식	단위	판매정가 (원)	기준납기	기준납기	기준납기	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
형식	단위	판매정가 (원)	유통재고	메이커재고	아린재고	질량	견적의뢰 및 주문
HA081208	P	30,800	-	-	-	-	견적의뢰 / 주문
HA081210	P	30,800	-	-	-	-	견적의뢰 / 주문
HA081212	P	32,560	-	-	-	-	견적의뢰 / 주문
HA081215	P	34,540	-	-	-	-	견적의뢰 / 주문
HA101408	P	30,800	-	-	-	-	견적의뢰 / 주문
HA101410	P	30,800	-	-	-	-	견적의뢰 / 주문
HA101412	P	32,560	-	-	-	-	견적의뢰 / 주문
HA101415	P	34,540	-	-	-	-	견적의뢰 / 주문
HA101420	P	36,080	-	-	-	-	견적의뢰 / 주문
HA121808	P	34,540	-	-	-	-	견적의뢰 / 주문
HA121810	P	34,540	-	-	-	-	견적의뢰 / 주문
HA121812	P	36,080	-	-	-	-	견적의뢰 / 주문
HA121815	P	37,620	-	-	-	-	견적의뢰 / 주문
HA121816	P	37,620	-	-	-	-	견적의뢰 / 주문
HA121819	P	37,620	-	-	-	-	견적의뢰 / 주문
HA121820	P	37,620	-	-	-	-	견적의뢰 / 주문
HA121825	P	44,660	-	-	-	-	견적의뢰 / 주문
HA121830	P	47,740	-	-	-	-	견적의뢰 / 주문
HA131910	P	41,140	-	-	-	-	견적의뢰 / 주문
HA131912	P	44,660	-	-	-	-	견적의뢰 / 주문
HA131915	P	47,740	-	-	-	-	견적의뢰 / 주문
HA131920	P	49,500	-	-	-	-	견적의뢰 / 주문
HA142010	P	43,120	-	-	-	-	견적의뢰 / 주문
HA142012	P	44,660	-	-	-	-	견적의뢰 / 주문
HA142015	P	47,960	-	-	-	-	견적의뢰 / 주문
HA142020	P	49,720	-	-	-	-	견적의뢰 / 주문
HA142025	P	51,700	-	-	-	-	견적의뢰 / 주문
HA142030	P	58,080	-	-	-	-	견적의뢰 / 주문
HA152110	P	43,120	-	-	-	-	견적의뢰 / 주문
HA152112	P	44,660	-	-	-	-	견적의뢰 / 주문
HA152115	P	49,500	-	-	-	-	견적의뢰 / 주문
HA152116	P	49,720	-	-	-	-	견적의뢰 / 주문
HA152120	P	51,480	-	-	-	-	견적의뢰 / 주문
HA152125	P	52,800	-	-	-	-	견적의뢰 / 주문
HA152130	P	59,620	-	-	-	-	견적의뢰 / 주문
HA162210	P	44,660	-	-	-	-	견적의뢰 / 주문
HA162212	P	46,420	-	-	-	-	견적의뢰 / 주문
HA162215	P	49,500	-	-	-	-	견적의뢰 / 주문
HA162216	P	49,500	-	-	-	-	견적의뢰 / 주문
HA162219	P	49,500	-	-	-	-	견적의뢰 / 주문
HA162220	P	49,500	-	-	-	-	견적의뢰 / 주문
HA162225	P	51,480	-	-	-	-	견적의뢰 / 주문
HA162230	P	61,380	-	-	-	-	견적의뢰 / 주문
HA162235	P	68,200	-	-	-	-	견적의뢰 / 주문
HA162240	P	78,540	-	-	-	-	견적의뢰 / 주문
HA172315	P	59,840	-	-	-	-	견적의뢰 / 주문
HA182412	P	61,380	-	-	-	-	견적의뢰 / 주문
HA182415	P	62,920	-	-	-	-	견적의뢰 / 주문
HA182416	P	63,360	-	-	-	-	견적의뢰 / 주문
HA182420	P	64,680	-	-	-	-	견적의뢰 / 주문
HA182425	P	66,660	-	-	-	-	견적의뢰 / 주문
HA182430	P	68,200	-	-	-	-	견적의뢰 / 주문
HA192615	P	62,920	-	-	-	-	견적의뢰 / 주문
HA192620	P	65,120	-	-	-	-	견적의뢰 / 주문
HA202810	P	56,100	-	-	-	-	견적의뢰 / 주문
HA202812	P	58,740	-	-	-	-	견적의뢰 / 주문
HA202815	P	61,380	-	-	-	-	견적의뢰 / 주문
HA202816	P	62,920	-	-	-	-	견적의뢰 / 주문
HA202819	P	62,920	-	-	-	-	견적의뢰 / 주문
HA202820	P	62,920	-	-	-	-	견적의뢰 / 주문
HA202825	P	68,200	-	-	-	-	견적의뢰 / 주문
HA202830	P	71,720	-	-	-	-	견적의뢰 / 주문
HA202835	P	81,400	-	-	-	-	견적의뢰 / 주문
HA202840	P	95,260	-	-	-	-	견적의뢰 / 주문
HA202850	P	102,520	-	-	-	-	견적의뢰 / 주문
HA203016	P	68,200	-	-	-	-	견적의뢰 / 주문
HA203020	P	68,200	-	-	-	-	견적의뢰 / 주문
HA203025	P	74,800	-	-	-	-	견적의뢰 / 주문
HA203030	P	81,400	-	-	-	-	견적의뢰 / 주문
HA203035	P	91,740	-	-	-	-	견적의뢰 / 주문
HA203040	P	102,080	-	-	-	-	견적의뢰 / 주문
HA223212	P	63,800	-	-	-	-	견적의뢰 / 주문
HA223215	P	66,660	-	-	-	-	견적의뢰 / 주문
HA223220	P	68,200	-	-	-	-	견적의뢰 / 주문
HA223225	P	71,720	-	-	-	-	견적의뢰 / 주문
HA253312	P	58,740	-	-	-	-	견적의뢰 / 주문
HA253315	P	59,620	-	-	-	-	견적의뢰 / 주문
HA253316	P	59,620	-	-	-	-	견적의뢰 / 주문
HA253320	P	71,720	-	-	-	-	견적의뢰 / 주문
HA253325	P	73,260	-	-	-	-	견적의뢰 / 주문
HA253330	P	74,800	-	-	-	-	견적의뢰 / 주문
HA253335	P	90,200	-	-	-	-	견적의뢰 / 주문
HA253340	P	98,780	-	-	-	-	견적의뢰 / 주문
HA253350	P	113,300	-	-	-	-	견적의뢰 / 주문
HA253360	P	118,800	-	-	-	-	견적의뢰 / 주문
HA253512	P	73,040	-	-	-	-	견적의뢰 / 주문
HA253515	P	74,800	-	-	-	-	견적의뢰 / 주문
HA253516	P	74,800	-	-	-	-	견적의뢰 / 주문
HA253520	P	74,800	-	-	-	-	견적의뢰 / 주문
HA253525	P	78,540	-	-	-	-	견적의뢰 / 주문
HA253530	P	81,400	-	-	-	-	견적의뢰 / 주문
HA253535	P	91,740	-	-	-	-	견적의뢰 / 주문
HA253540	P	102,080	-	-	-	-	견적의뢰 / 주문
HA253550	P	115,500	-	-	-	-	견적의뢰 / 주문
HA283820	P	73,260	-	-	-	-	견적의뢰 / 주문
HA283825	P	76,560	-	-	-	-	견적의뢰 / 주문
HA283830	P	78,540	-	-	-	-	견적의뢰 / 주문
HA283840	P	98,780	-	-	-	-	견적의뢰 / 주문
HA303812	P	70,180	-	-	-	-	견적의뢰 / 주문
HA303815	P	73,260	-	-	-	-	견적의뢰 / 주문
HA303820	P	73,260	-	-	-	-	견적의뢰 / 주문
HA303825	P	76,560	-	-	-	-	견적의뢰 / 주문
HA303830	P	78,540	-	-	-	-	견적의뢰 / 주문
HA303835	P	91,740	-	-	-	-	견적의뢰 / 주문
HA303840	P	98,780	-	-	-	-	견적의뢰 / 주문
HA303850	P	113,300	-	-	-	-	견적의뢰 / 주문
HA303860	P	118,800	-	-	-	-	견적의뢰 / 주문
HA304012	P	70,180	-	-	-	-	견적의뢰 / 주문
HA304015	P	73,260	-	-	-	-	견적의뢰 / 주문
HA304020	P	73,260	-	-	-	-	견적의뢰 / 주문
HA304025	P	76,560	-	-	-	-	견적의뢰 / 주문
HA304030	P	78,540	-	-	-	-	견적의뢰 / 주문
HA304035	P	88,440	-	-	-	-	견적의뢰 / 주문
HA304040	P	98,780	-	-	-	-	견적의뢰 / 주문
HA304050	P	113,300	-	-	-	-	견적의뢰 / 주문
HA304060	P	125,400	-	-	-	-	견적의뢰 / 주문
HA314030	P	85,140	-	-	-	-	견적의뢰 / 주문
HA314040	P	108,460	-	-	-	-	견적의뢰 / 주문
HA324220	P	73,480	-	-	-	-	견적의뢰 / 주문
HA324230	P	81,400	-	-	-	-	견적의뢰 / 주문
HA324240	P	103,840	-	-	-	-	견적의뢰 / 주문
HA354420	P	78,540	-	-	-	-	견적의뢰 / 주문
HA354425	P	81,400	-	-	-	-	견적의뢰 / 주문
HA354430	P	85,140	-	-	-	-	견적의뢰 / 주문
HA354435	P	91,740	-	-	-	-	견적의뢰 / 주문
HA354440	P	108,460	-	-	-	-	견적의뢰 / 주문
HA354450	P	113,300	-	-	-	-	견적의뢰 / 주문
HA354460	P	133,100	-	-	-	-	견적의뢰 / 주문
HA354520	P	71,720	-	-	-	-	견적의뢰 / 주문
HA354525	P	78,540	-	-	-	-	견적의뢰 / 주문
HA354530	P	85,140	-	-	-	-	견적의뢰 / 주문
HA354535	P	98,780	-	-	-	-	견적의뢰 / 주문
HA354540	P	108,460	-	-	-	-	견적의뢰 / 주문
HA354550	P	122,100	-	-	-	-	견적의뢰 / 주문
HA354560	P	135,300	-	-	-	-	견적의뢰 / 주문
HA384840	P	116,600	-	-	-	-	견적의뢰 / 주문
HA405015	P	81,400	-	-	-	-	견적의뢰 / 주문
HA405020	P	81,400	-	-	-	-	견적의뢰 / 주문
HA405025	P	83,380	-	-	-	-	견적의뢰 / 주문
HA405030	P	85,140	-	-	-	-	견적의뢰 / 주문
HA405035	P	95,260	-	-	-	-	견적의뢰 / 주문
HA405040	P	125,400	-	-	-	-	견적의뢰 / 주문
HA405050	P	128,700	-	-	-	-	견적의뢰 / 주문
HA405060	P	130,900	-	-	-	-	견적의뢰 / 주문
HA405070	P	143,000	-	-	-	-	견적의뢰 / 주문
HA405080	P	146,300	-	-	-	-	견적의뢰 / 주문
HA405515	P	115,500	-	-	-	-	견적의뢰 / 주문
HA405530	P	128,700	-	-	-	-	견적의뢰 / 주문
HA405535	P	133,100	-	-	-	-	견적의뢰 / 주문
HA405540	P	133,100	-	-	-	-	견적의뢰 / 주문
HA405550	P	135,300	-	-	-	-	견적의뢰 / 주문
HA405560	P	146,300	-	-	-	-	견적의뢰 / 주문
HA455530	P	98,780	-	-	-	-	견적의뢰 / 주문
HA455535	P	102,080	-	-	-	-	견적의뢰 / 주문
HA455540	P	105,600	-	-	-	-	견적의뢰 / 주문
HA455550	P	128,700	-	-	-	-	견적의뢰 / 주문
HA455560	P	149,600	-	-	-	-	견적의뢰 / 주문
HA455630	P	105,600	-	-	-	-	견적의뢰 / 주문
HA455635	P	108,460	-	-	-	-	견적의뢰 / 주문
HA455640	P	117,700	-	-	-	-	견적의뢰 / 주문
HA455650	P	133,100	-	-	-	-	견적의뢰 / 주문
HA455660	P	152,900	-	-	-	-	견적의뢰 / 주문
HA456030	P	128,700	-	-	-	-	견적의뢰 / 주문
HA456035	P	139,700	-	-	-	-	견적의뢰 / 주문
HA456040	P	146,300	-	-	-	-	견적의뢰 / 주문
HA456050	P	162,800	-	-	-	-	견적의뢰 / 주문
HA456060	P	180,400	-	-	-	-	견적의뢰 / 주문
HA456070	P	196,900	-	-	-	-	견적의뢰 / 주문
HA456080	P	221,100	-	-	-	-	견적의뢰 / 주문
HA506020	P	91,300	-	-	-	-	견적의뢰 / 주문
HA506030	P	95,260	-	-	-	-	견적의뢰 / 주문
HA506035	P	112,200	-	-	-	-	견적의뢰 / 주문
HA506040	P	129,800	-	-	-	-	견적의뢰 / 주문
HA506050	P	133,100	-	-	-	-	견적의뢰 / 주문
HA506060	P	156,200	-	-	-	-	견적의뢰 / 주문
HA506070	P	180,400	-	-	-	-	견적의뢰 / 주문
HA506080	P	198,000	-	-	-	-	견적의뢰 / 주문
HA506230	P	98,780	-	-	-	-	견적의뢰 / 주문
HA506235	P	117,700	-	-	-	-	견적의뢰 / 주문
HA506240	P	129,800	-	-	-	-	견적의뢰 / 주문
HA506250	P	140,800	-	-	-	-	견적의뢰 / 주문
HA506260	P	158,400	-	-	-	-	견적의뢰 / 주문
HA506270	P	180,400	-	-	-	-	견적의뢰 / 주문
HA506530	P	100,320	-	-	-	-	견적의뢰 / 주문
HA506540	P	128,700	-	-	-	-	견적의뢰 / 주문
HA506550	P	152,900	-	-	-	-	견적의뢰 / 주문
HA506560	P	183,700	-	-	-	-	견적의뢰 / 주문
HA506570	P	203,500	-	-	-	-	견적의뢰 / 주문
HA506580	P	215,600	-	-	-	-	견적의뢰 / 주문
HA5065100	P	323,400	-	-	-	-	견적의뢰 / 주문
HA557030	P	135,300	-	-	-	-	견적의뢰 / 주문
HA557035	P	143,000	-	-	-	-	견적의뢰 / 주문
HA557040	P	156,200	-	-	-	-	견적의뢰 / 주문
HA557050	P	203,500	-	-	-	-	견적의뢰 / 주문
HA557060	P	247,500	-	-	-	-	견적의뢰 / 주문
HA557070	P	288,200	-	-	-	-	견적의뢰 / 주문
HA607430	P	125,400	-	-	-	-	견적의뢰 / 주문
HA607435	P	135,300	-	-	-	-	견적의뢰 / 주문
HA607440	P	149,600	-	-	-	-	견적의뢰 / 주문
HA607450	P	183,700	-	-	-	-	견적의뢰 / 주문
HA607460	P	221,100	-	-	-	-	견적의뢰 / 주문
HA607470	P	270,600	-	-	-	-	견적의뢰 / 주문
HA607480	P	309,100	-	-	-	-	견적의뢰 / 주문
HA607530	P	135,300	-	-	-	-	견적의뢰 / 주문
HA607535	P	139,700	-	-	-	-	견적의뢰 / 주문
HA607540	P	149,600	-	-	-	-	견적의뢰 / 주문
HA607550	P	183,700	-	-	-	-	견적의뢰 / 주문
HA607560	P	221,100	-	-	-	-	견적의뢰 / 주문
HA607570	P	270,600	-	-	-	-	견적의뢰 / 주문
HA607580	P	309,100	-	-	-	-	견적의뢰 / 주문
HA6075100	P	390,500	-	-	-	-	견적의뢰 / 주문
HA637560	P	221,100	-	-	-	-	견적의뢰 / 주문
HA637570	P	270,600	-	-	-	-	견적의뢰 / 주문
HA637580	P	309,100	-	-	-	-	견적의뢰 / 주문
HA658040	P	176,000	-	-	-	-	견적의뢰 / 주문
HA658050	P	196,900	-	-	-	-	견적의뢰 / 주문
HA658060	P	221,100	-	-	-	-	견적의뢰 / 주문
HA658070	P	275,000	-	-	-	-	견적의뢰 / 주문
HA658080	P	322,300	-	-	-	-	견적의뢰 / 주문
HA708530	P	146,300	-	-	-	-	견적의뢰 / 주문
HA708535	P	149,600	-	-	-	-	견적의뢰 / 주문
HA708540	P	162,800	-	-	-	-	견적의뢰 / 주문
HA708550	P	196,900	-	-	-	-	견적의뢰 / 주문
HA708560	P	234,300	-	-	-	-	견적의뢰 / 주문
HA708570	P	288,200	-	-	-	-	견적의뢰 / 주문
HA708580	P	322,300	-	-	-	-	견적의뢰 / 주문
HA7085100	P	390,500	-	-	-	-	견적의뢰 / 주문
HA709050	P	294,800	-	-	-	-	견적의뢰 / 주문
HA709060	P	352,000	-	-	-	-	견적의뢰 / 주문
HA709070	P	410,300	-	-	-	-	견적의뢰 / 주문
HA709080	P	470,800	-	-	-	-	견적의뢰 / 주문
HA759050	P	244,200	-	-	-	-	견적의뢰 / 주문
HA759060	P	261,800	-	-	-	-	견적의뢰 / 주문
HA759070	P	301,400	-	-	-	-	견적의뢰 / 주문
HA759080	P	345,400	-	-	-	-	견적의뢰 / 주문
HA7590100	P	441,100	-	-	-	-	견적의뢰 / 주문
HA759560	P	345,400	-	-	-	-	견적의뢰 / 주문
HA759570	P	400,400	-	-	-	-	견적의뢰 / 주문
HA759580	P	454,300	-	-	-	-	견적의뢰 / 주문
HA7595100	P	542,300	-	-	-	-	견적의뢰 / 주문
HA809640	P	196,900	-	-	-	-	견적의뢰 / 주문
HA809650	P	234,300	-	-	-	-	견적의뢰 / 주문
HA809660	P	278,300	-	-	-	-	견적의뢰 / 주문
HA809670	P	319,000	-	-	-	-	견적의뢰 / 주문
HA809680	P	363,000	-	-	-	-	견적의뢰 / 주문
HA8096100	P	447,700	-	-	-	-	견적의뢰 / 주문
HA8096120	P	529,100	-	-	-	-	견적의뢰 / 주문
HA8010040	P	237,600	-	-	-	-	견적의뢰 / 주문
HA8010050	P	270,600	-	-	-	-	견적의뢰 / 주문
HA8010060	P	305,800	-	-	-	-	견적의뢰 / 주문
HA8010070	P	356,400	-	-	-	-	견적의뢰 / 주문
HA8010080	P	407,000	-	-	-	-	견적의뢰 / 주문
HA80100100	P	542,300	-	-	-	-	견적의뢰 / 주문
HA80100120	P	661,100	-	-	-	-	견적의뢰 / 주문
HA80100140	P	713,900	-	-	-	-	견적의뢰 / 주문
HA8510060	P	325,600	-	-	-	-	견적의뢰 / 주문
HA8510080	P	386,100	-	-	-	-	견적의뢰 / 주문
HA9011050	P	337,700	-	-	-	-	견적의뢰 / 주문
HA9011060	P	372,900	-	-	-	-	견적의뢰 / 주문
HA9011080	P	475,200	-	-	-	-	견적의뢰 / 주문
HA9011090	P	534,600	-	-	-	-	견적의뢰 / 주문
HA90110100	P	594,000	-	-	-	-	견적의뢰 / 주문
HA90110120	P	698,500	-	-	-	-	견적의뢰 / 주문
HA10012050	P	312,400	-	-	-	-	견적의뢰 / 주문
HA10012060	P	332,200	-	-	-	-	견적의뢰 / 주문
HA10012070	P	372,900	-	-	-	-	견적의뢰 / 주문
HA10012080	P	525,800	-	-	-	-	견적의뢰 / 주문
HA10012090	P	601,700	-	-	-	-	견적의뢰 / 주문
HA100120100	P	677,600	-	-	-	-	견적의뢰 / 주문
HA100120120	P	745,800	-	-	-	-	견적의뢰 / 주문
HA100120140	P	832,700	-	-	-	-	견적의뢰 / 주문
HA11013050	P	368,500	-	-	-	-	견적의뢰 / 주문
HA11013070	P	460,900	-	-	-	-	견적의뢰 / 주문
HA11013080	P	542,300	-	-	-	-	견적의뢰 / 주문
HA110130100	P	684,200	-	-	-	-	견적의뢰 / 주문
HA110130120	P	752,400	-	-	-	-	견적의뢰 / 주문
HA12014070	P	569,800	-	-	-	-	견적의뢰 / 주문
HA12014080	P	627,000	-	-	-	-	견적의뢰 / 주문
HA12014090	P	658,900	-	-	-	-	견적의뢰 / 주문
HA120140100	P	688,600	-	-	-	-	견적의뢰 / 주문
HA120140120	P	755,700	-	-	-	-	견적의뢰 / 주문
HA120140140	P	894,300	-	-	-	-	견적의뢰 / 주문
HA125145100	P	796,400	-	-	-	-	견적의뢰 / 주문
HA125145120	P	965,800	-	-	-	-	견적의뢰 / 주문
HA13015080	P	650,100	-	-	-	-	견적의뢰 / 주문
HA130150100	P	812,900	-	-	-	-	견적의뢰 / 주문
HA130150130	P	1,050,500	-	-	-	-	견적의뢰 / 주문
HA140160100	P	864,600	-	-	-	-	견적의뢰 / 주문
HA140160140	P	1,188,000	-	-	-	-	견적의뢰 / 주문
HA15017080	P	759,000	-	-	-	-	견적의뢰 / 주문
HA150170100	P	948,200	-	-	-	-	견적의뢰 / 주문
HA150170150	P	1,386,000	-	-	-	-	견적의뢰 / 주문
HA16018080	P	867,900	-	-	-	-	견적의뢰 / 주문
HA160180100	P	1,084,600	-	-	-	-	견적의뢰 / 주문
HA160180150	P	1,595,000	-	-	-	-	견적의뢰 / 주문

- 아린재고가 있는 상품은 결재가 완료되면 결재한 다음날부터 1~3일 이내 전국(도서지방제외)으로 택배를 통해 배송됩니다.

- 아린재고가 없는 수입품의 경우는 납품까지 수일 내지 수주가 소요될 수 있으므로 주문전에 당사에 납기를 미리 확인하여 주십시오.

- 제품크기에 따라 택배나 화물운송업체를 통해 배송해 드리며, 주문금액 20만원 이하의 경우 5,500원의 배송비가 추가됩니다.

- 제주도 등 도서지역의 경우 추가배송 금액이 발생할 수 있으니 주문전에 고객센터로 문의 주십시오.

- 제품을 받아보시고 이상이 있을 경우에 한하여 배송 후 14일 이내에 교환 및 반품이 가능합니다.
- 상품대금을 신용카드로 결제한 경우는 매출을 취소해드리며, 온라인으로 입금한 경우에는 주문자의 계좌번호로 3일내로 입금 처리해 드립니다.

상품명
상품코드
